2007 Buell Firebolt: Fuel System 4-53
HOME

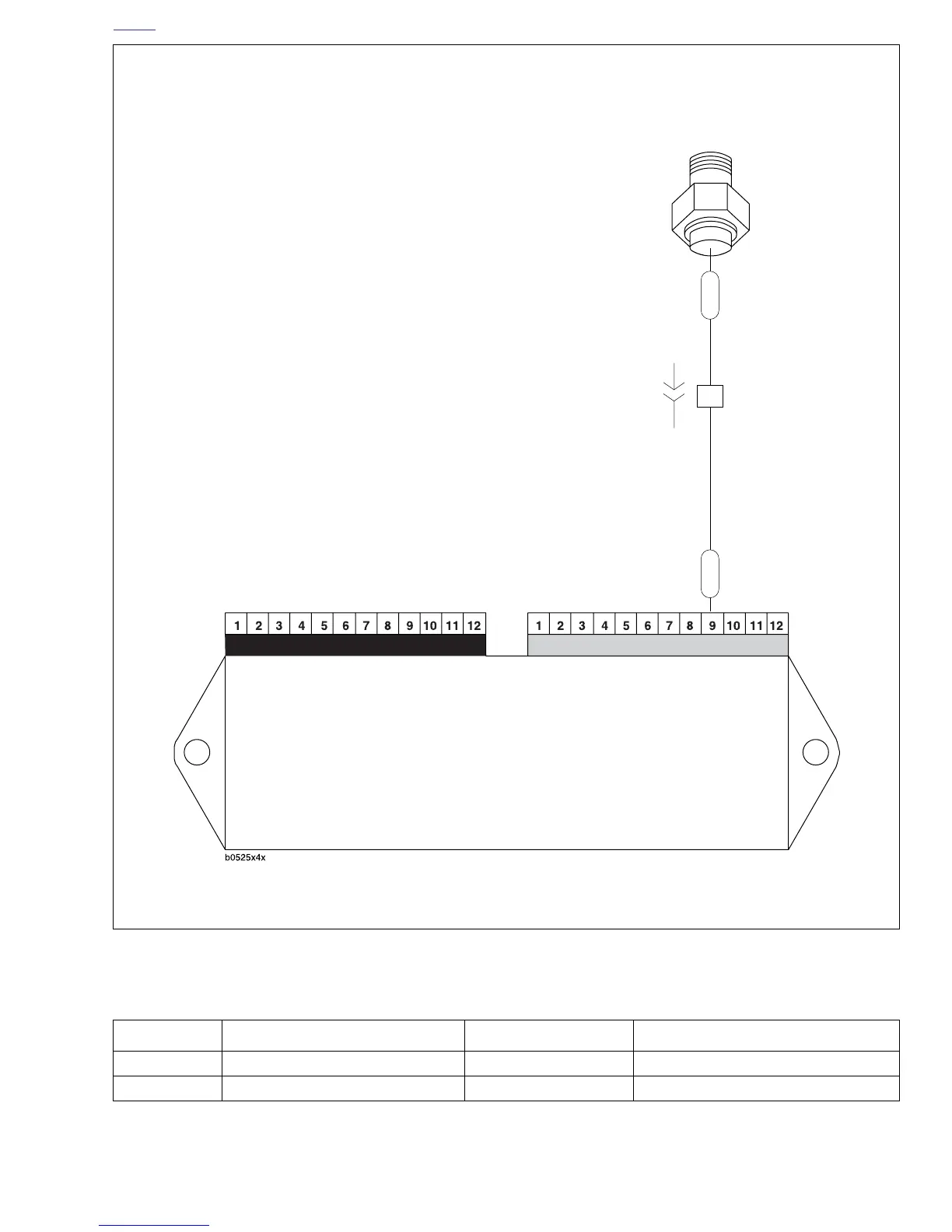

Figure 4-38. Engine Temperature Sensor Circuit
b0529x4x
Engine
Temperature
Sensor [90]
PK/Y
Electronic Control Module
(ECM)
Connector [10] Connector [11]
PK/Y
1
b0801x4x
[90A]
[90B]
Table 4-20. Wire Harness Connectors in Figure 4-38.
NO. DESCRIPTION TYPE LOCATION
[11] ECM (gray) 12-place Deutsch in fairing
[90] engine temperature sensor 1-place bullet beneath air cleaner baseplate
