4-126 2007 Buell Firebolt: Fuel System
HOME
INSTALLATION
1. See Figure 4-115. Hold baseplate above mounting posi-
tion.
2. Insert IAT sensor into grommet on baseplate from under-
side.
NOTE
A small amount of soapy water applied to the inside diameter
of grommet will make breather hose installation easier.
NOTE
In next step, be sure breather hoses do not extend past
Intake air temperature sensor tower. If hoses extend past
tower, damage to sensor may occur.
3. Insert longer breather hose into right baseplate grommet
from underside.
4. Attach shorter breather hose onto crankcase breather
located on top of rear cylinder.
5. Carefully lower baseplate into mounting position. Ensure
rubber sealing ring on velocity stack completely engages
baseplate. Baseplate should be sandwiched between
upper and lower rubber sealing rings.
6. Install baseplate to frame with four fasteners and wash-
ers (5). Tighten fasteners to 84-120 in-lbs (9.5-13.6 Nm).
7. Position air cleaner filter on baseplate.
8. Install air cleaner to baseplate and latch six latches to
secure.
9. If interactive exhaust actuator (XB12R) was removed,
install at this time and tighten fasteners to 36-40 in-lbs
(4-4.5 Nm). See 1.17 INTERACTIVE EXHAUST CABLE.
10. Route vent hose through groove on air cleaner to vent
valve.
11. Install intake cover assembly. See 2.34 INTAKE COVER
ASSEMBLY.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
12. Install seat. See 2.38 SEAT.

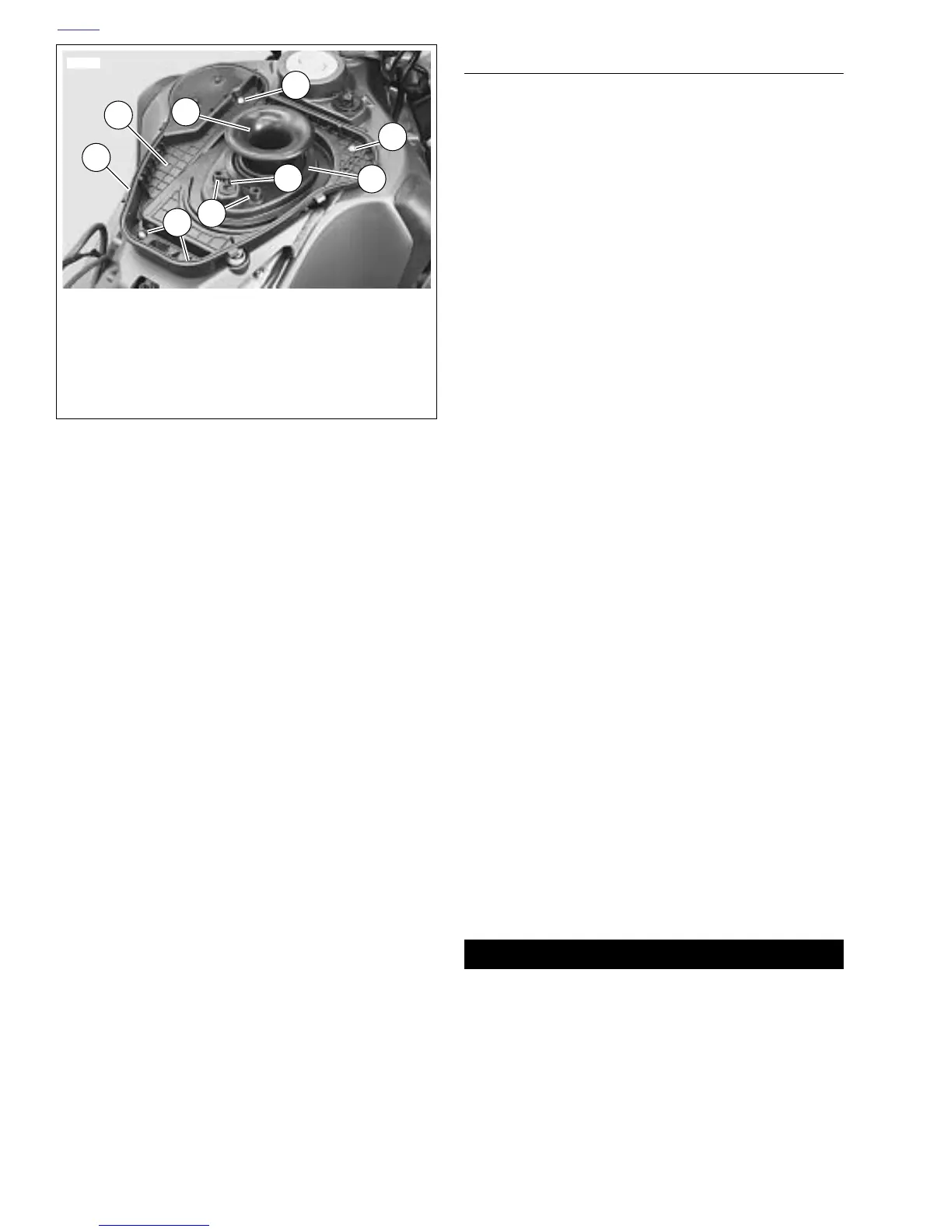

Figure 4-115. Baseplate
11504
1. Fasteners
2. Gasket
3. Baseplate
4. Velocity stack
5. Velocity stack sealing ring
6. Intake air temperature sensor (IAT)
7. Breather hoses
5
1
1
1
6
7
3
2
4
