2007 Buell Firebolt: Electrical 7-19
HOME

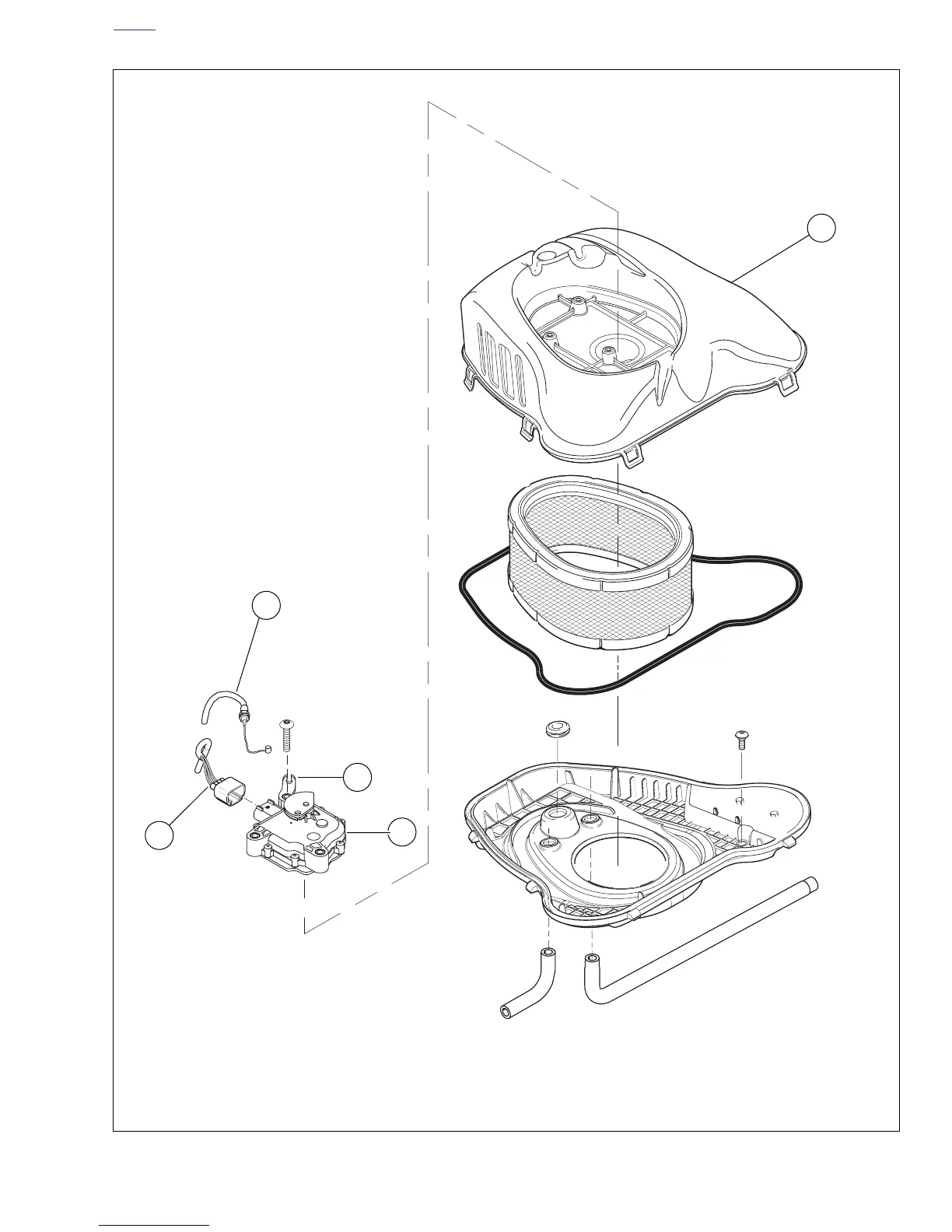

Figure 7-20. Interactive Control System (XB12R)
1. Interactive exhaust cable
2. Harness with connector [161B]
3. Interactive exhaust cable bracket
4. Actuator
5. Air cleaner cover
4
b0064b
1
2
3
5
