2007 Buell Firebolt: Electrical 7-67
HOME

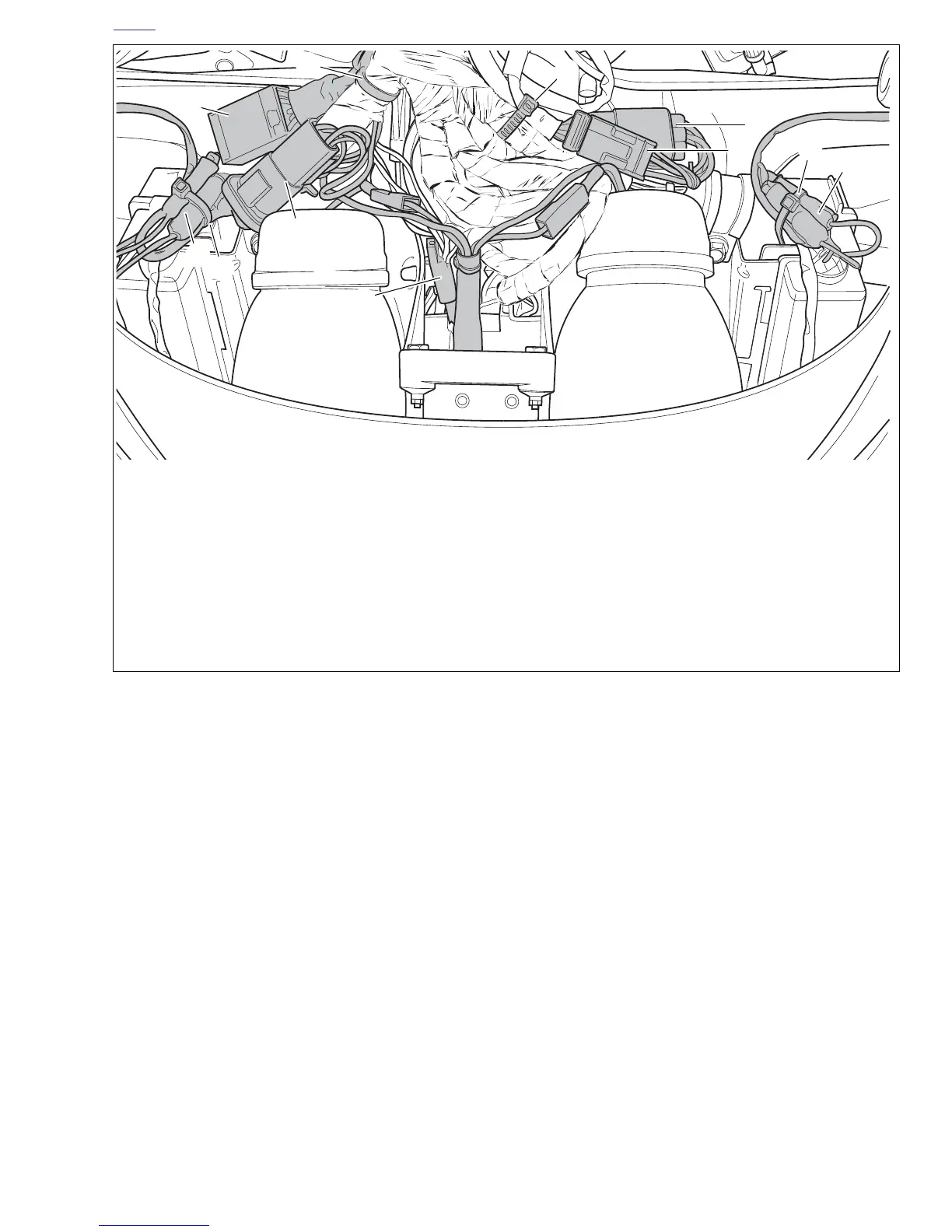

Figure 7-83. Fairing Wiring (viewed from beneath fairing)
b1023b8x
11
10
3
4
5
9
1
2
8
7
6
1. Cable strap
2. Left turn signal connectors
3. Data link [91]
4. Left switch housing connector [24]
5. Cable strap
6. Headlight connector [38]
7. Right turn signal connectors
8. Cable strap
9. Right switch housing connector [22]
10. Ignition switch connector [33]
11. Cable strap
