2.2 Design
2.2.1 DFTA 12 model
The machine consists of the dust-tight sieve housing which is supported on a frame
by hollow rubber springs. The machine is equipped with two sieve decks. The
clamping levers immediately release the slide-in sieve frames when unclamped,
which allows quick sieve changes. The sieve frame is supported on four hollow rub-
ber springs. This prevents vibrations from being transmitted to the housing.

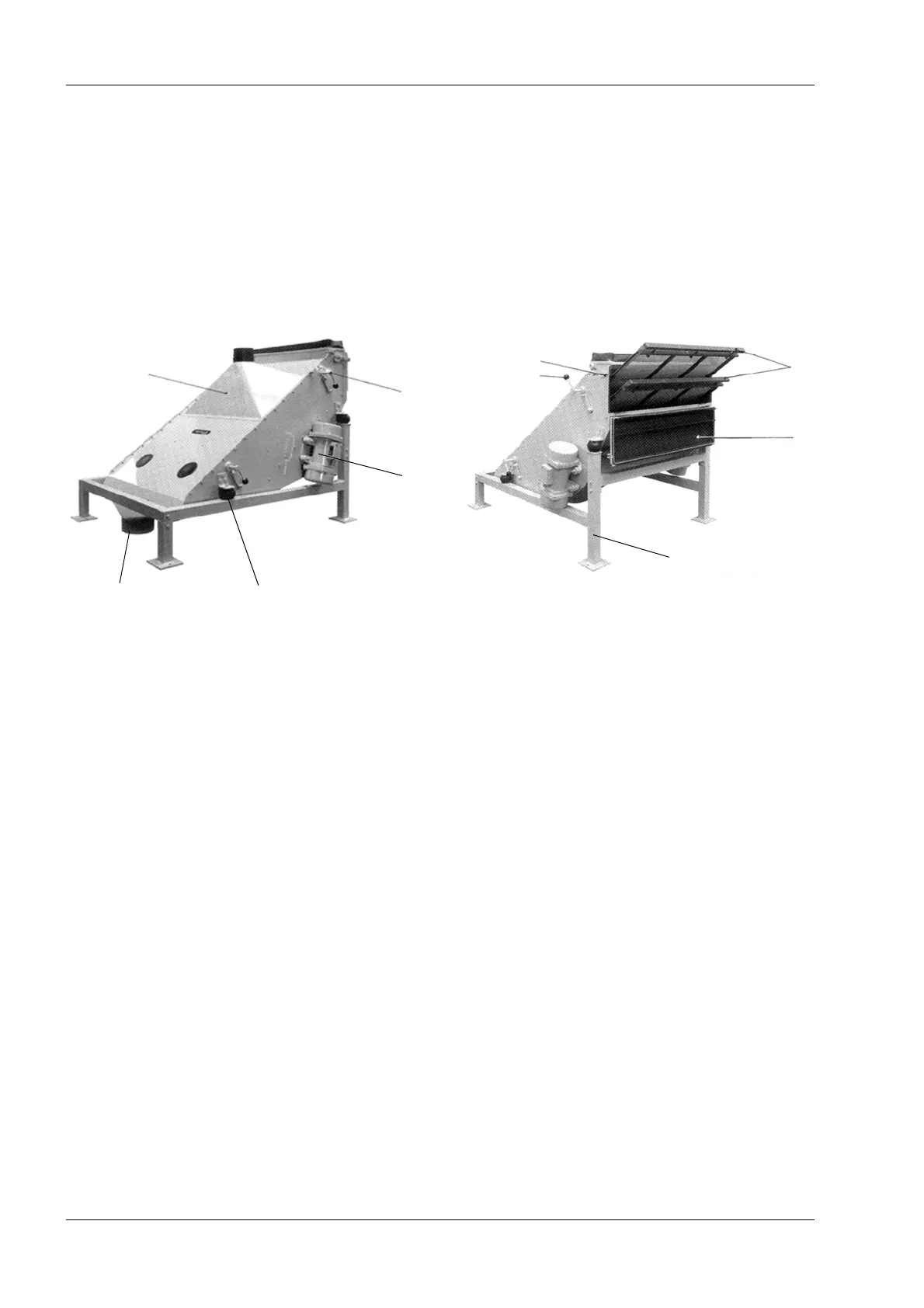

Fig. 2.2
5
4
3
2
1
6
7
8
9
3
(1) Aspiration hood
(2) Sleeve
(3) Clamping levers for clamping the sieve
(4) Sieve deck (sieve with sieve frame)
(5) Door
(6) Frame
(7) Hollow rubber spring
(8) Vibrator motor
(9) Tension lock
