5.3.2 Adjusting the stroke for DFTA 12 / 13 / 23

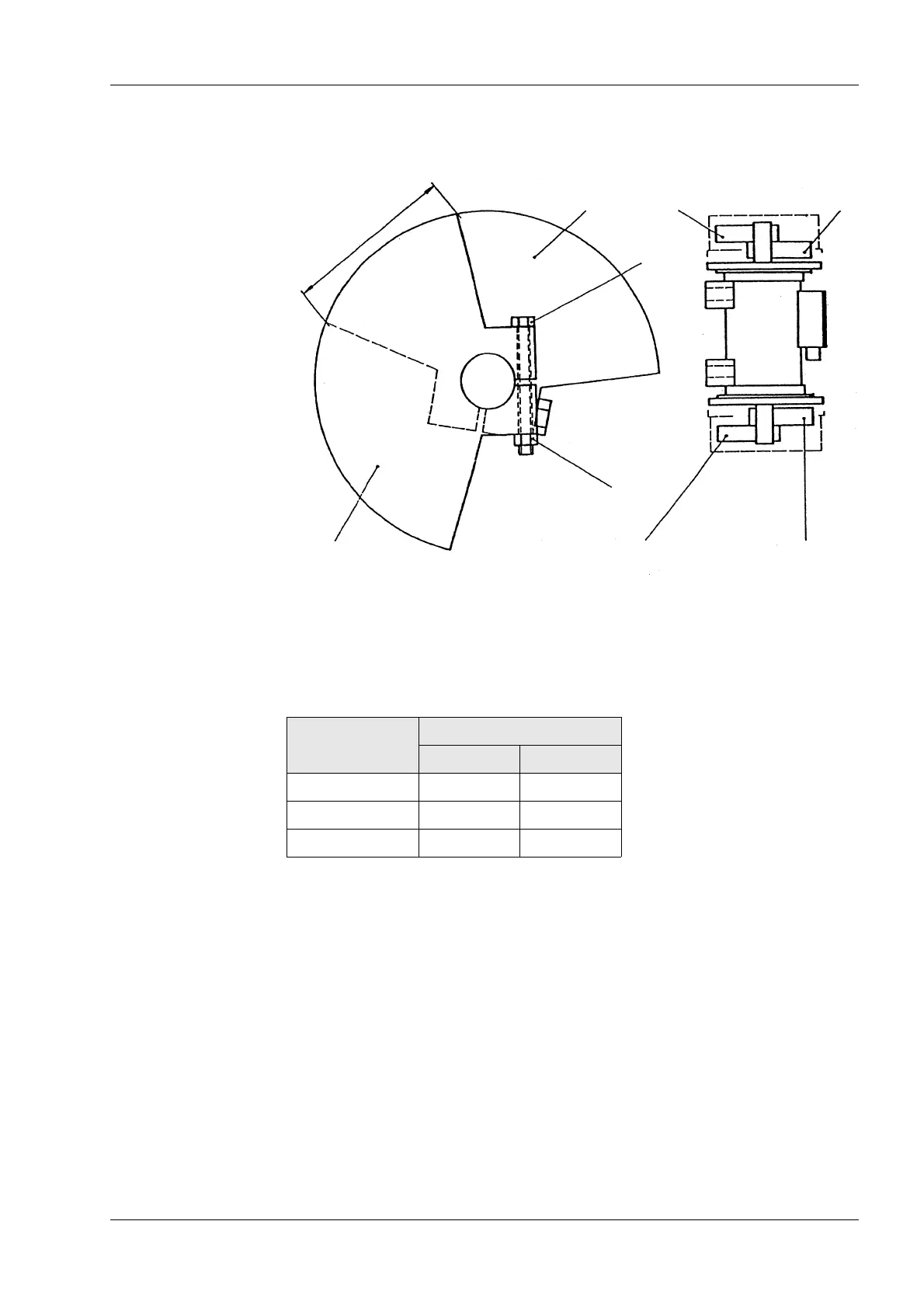

Fig. 5.2
Type X
50 Hz 60 Hz
DFTA-12 76 mm 50 mm
DFTA-13 135 mm 85 mm
DFTA-23 90 mm 55 mm
2
11
1
2
2
3
4
X
(1) Centrifugal weight
(2) Inner centrifugal weight
(3) Screw
(4) Nut
