Buhler DFTA 12 - Changing the Sieve Clothing

34 Maintenance Throw sifter
DFTA-66620-2-en-1803 © Copyright 2018 Bühler AG
7.3 Changing the sieve clothing
If the sieve frames must be newly clothed due to worn sieves, the sieve clothing can
be removed and replaced.

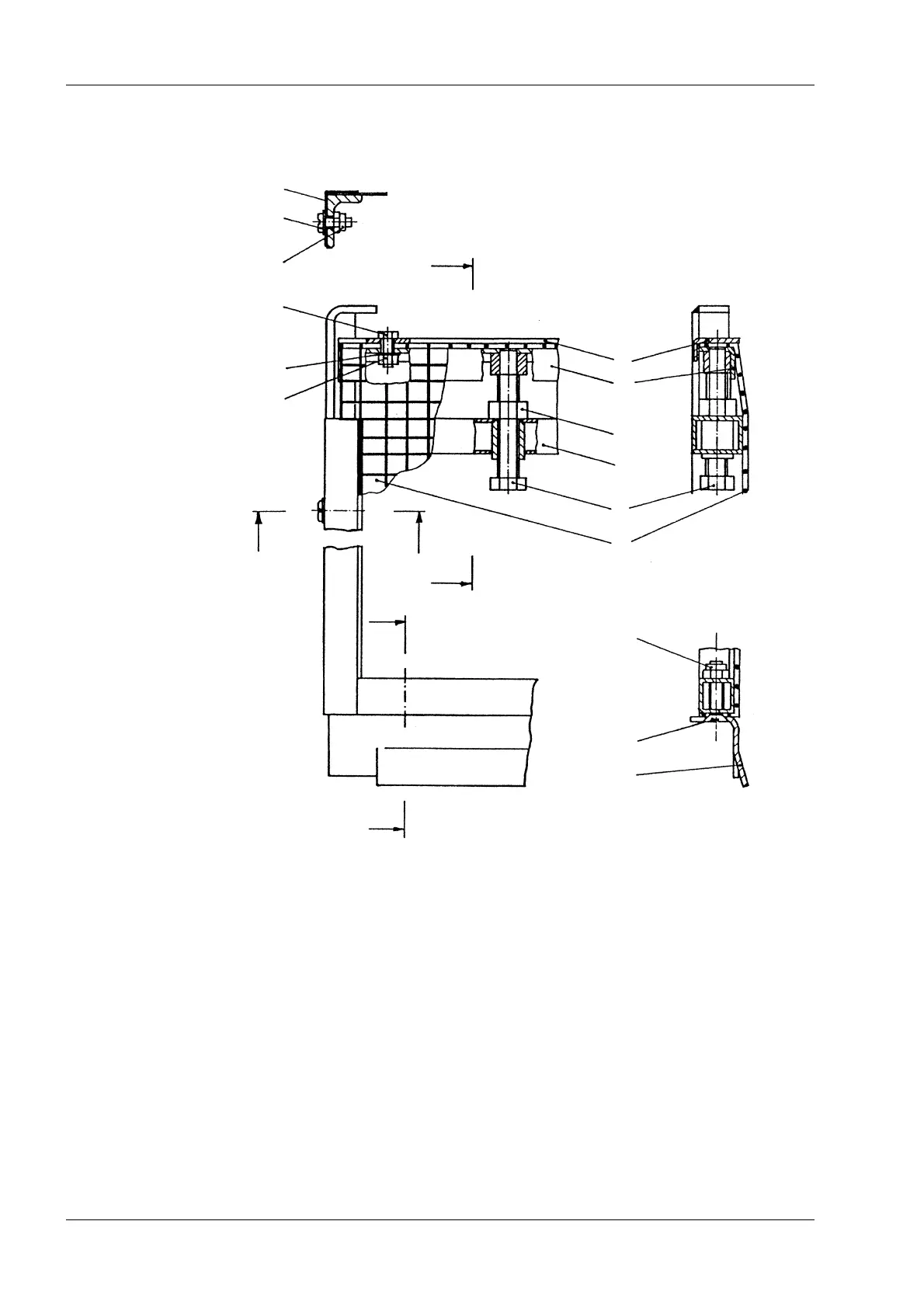

Fig. 7.1
1
2
3
4
5
6
7
8
9
10
13
12
11
13
13
A
A – A B
B
C
C - C
C
B - BA
(1) Sieve frame
(2) Sieve clothing (wire cloth)
(3) Clamping angle, front
(4) Clamping angle, rear
(5) Clamping angle
(6) Bracket
(7) Tension screw
(8) Counter-nut
(9) Hexagon bolt
(10) Washer
(11) Slotted screw
(12) Countersunk screw
(13) Locknut
