Installation
Type 8202/8222
8.4.2. Wiring a version with a single M12
fixed connector
1
2
3
4
V+ (14-36 V DC)
Transistor output 1
Transistor output 2
0V

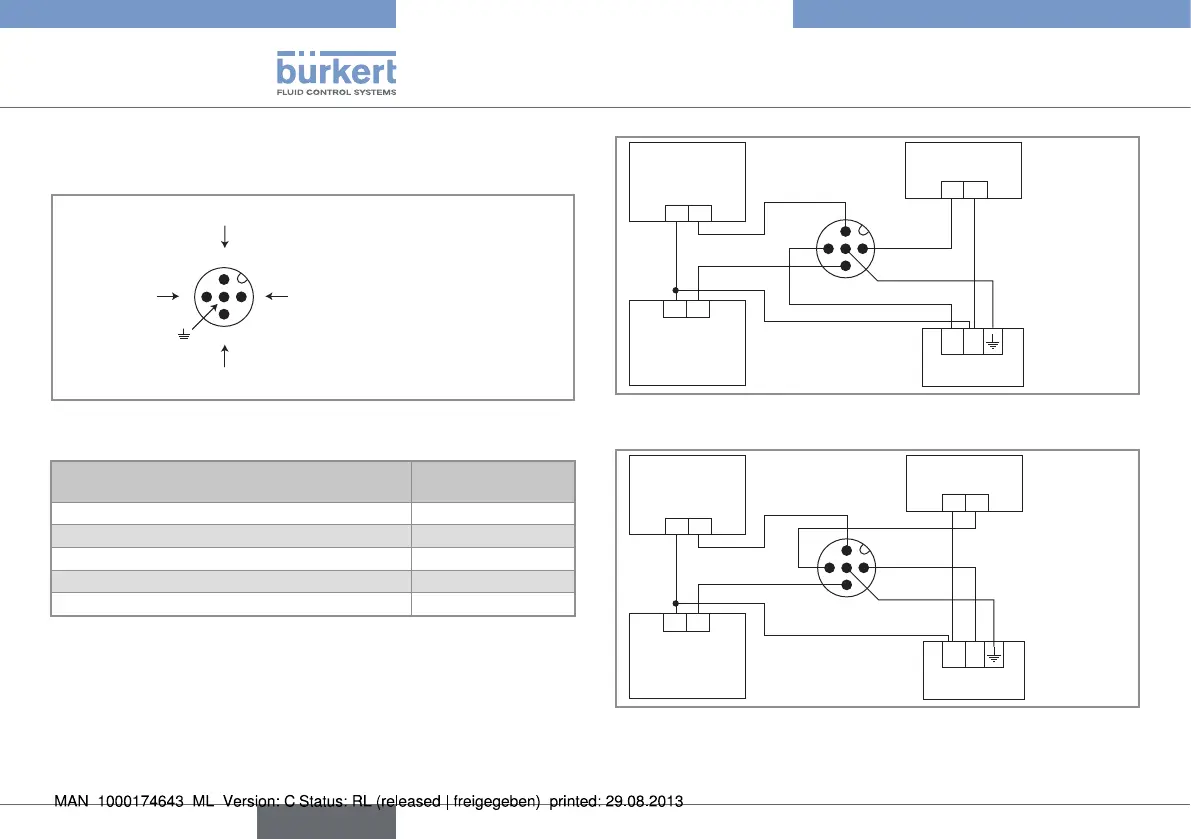

Fig. 20: Pin assignment of the fixed connector on a version with a
single M12 fixed connector
Pin of the M12 female cable available as
an accessory (order code 438680)
Colour of the wire
1 brown
2 white
3 blue
4 black
5
grey
14-36 V DC
+ -
+ -
1
2
3
4
Load 2
Load 1
4-20 mA input at
external device
brown
grey
blue
white
black
Power supply
Fig. 21: NPN wiring of both transistor outputs and wiring the current
output in sinking mode (software setting "NPN/sink")
14-36 V DC
+ -
+ -
1
2
3
4
Load 2
Load 1
4-20 mA input at
external device
brown
grey
blue
white
black
Power supply
Fig. 22: PNP wiring of both transistor outputs and wiring the
current output in sourcing mode (software setting "PNP/
source")
