Installation
Type 8202/8222
8.4.3. Wiring a version with 2 M12 fixed
connectors
1
2
3
4
Transistor output 1
Current output 1
0V
V+
(12-36 V DC)
Male fixed connector
1
2
3
4
V+
(12-36 V DC)
Transistor output 2
Current output 2
0V
Female fixed connector

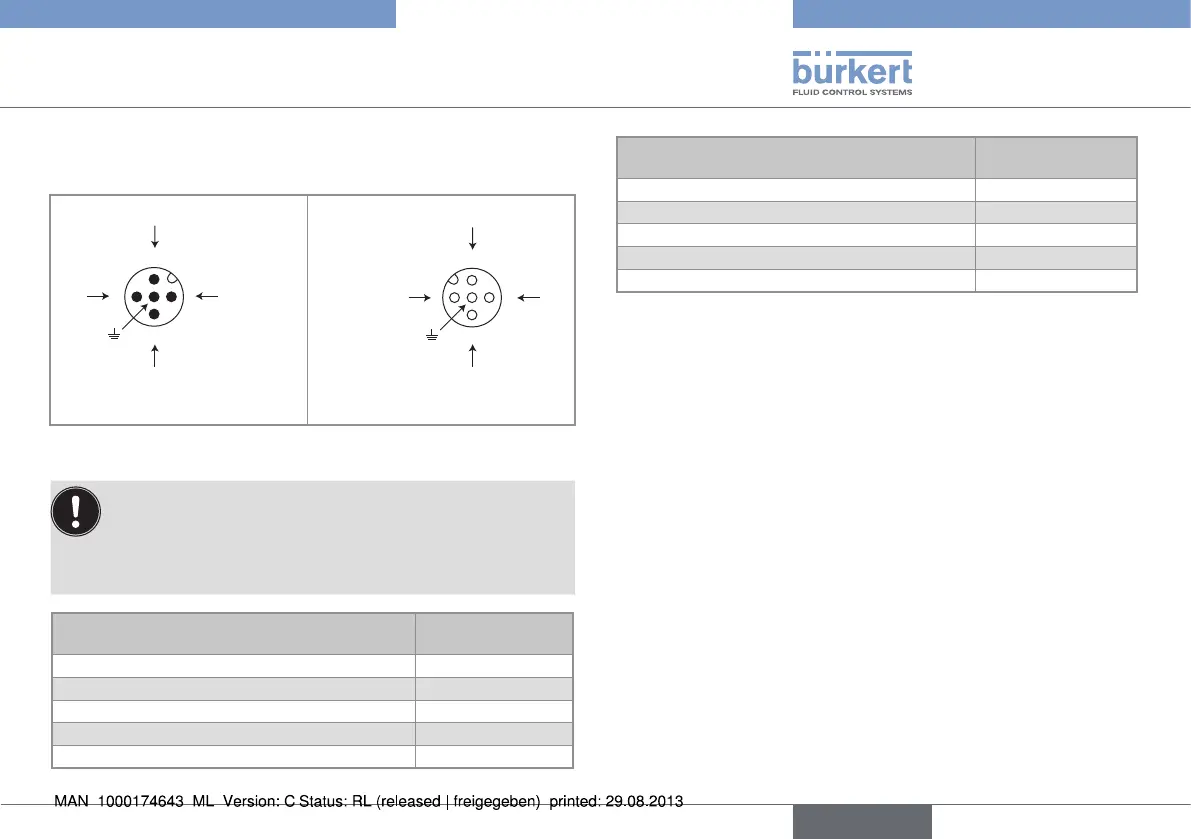

Fig. 23: Pin assignment of the male and female M12 fixed
connectors
Connect the power supply for the transmitter to the
male fixed connector; the supply is then transferred
internally to pins 1 and 3 of the female fixed connector
in order to ease wiring of the load to the female fixed
connector.
Pin of the M12 female cable available as
an accessory (order code 438680)
Colour of the
wire
1 brown
2 white
3 blue
4 black
5
grey
Pin of the M12 male cable available as an
accessory (order code 559177)
Colour of the wire
1 brown
2 white
3 blue
4 black
5
grey
