YAK 130
BVM ©2016 16 Mar. 23, 2016
Bottom Top

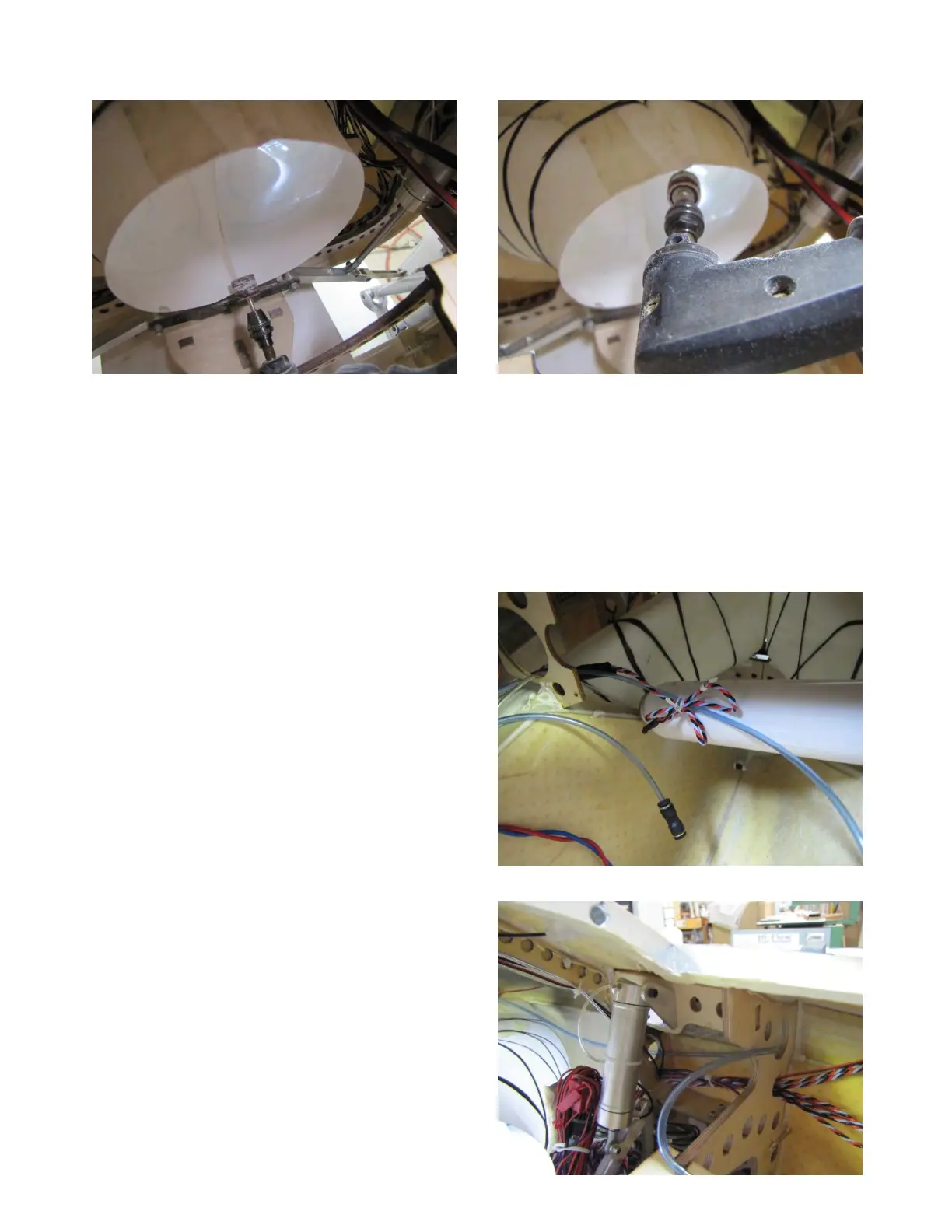

It will be necessary to trim the bottom and top Inlet center web to allow room for the
turbine F.O.D. screen. A 90 Dremel tool with a drum sander works well.
Routing Servo wires, Light wires, and Air Lines
Smoke Pump
NOTE: Some modelers opt to use the smoke
tank for extra engine fuel to extend flight time.
Separate the smoke pump servo wire from
the smoke pump oil line and route the servo
wire forward towards the nose of the
aircraft..
Route the blue smoke oil line aft through
the (2) formers and connect to the pre
installed metal smoke line.
