YAK 130
BVM ©2016 37 Mar. 23, 2016

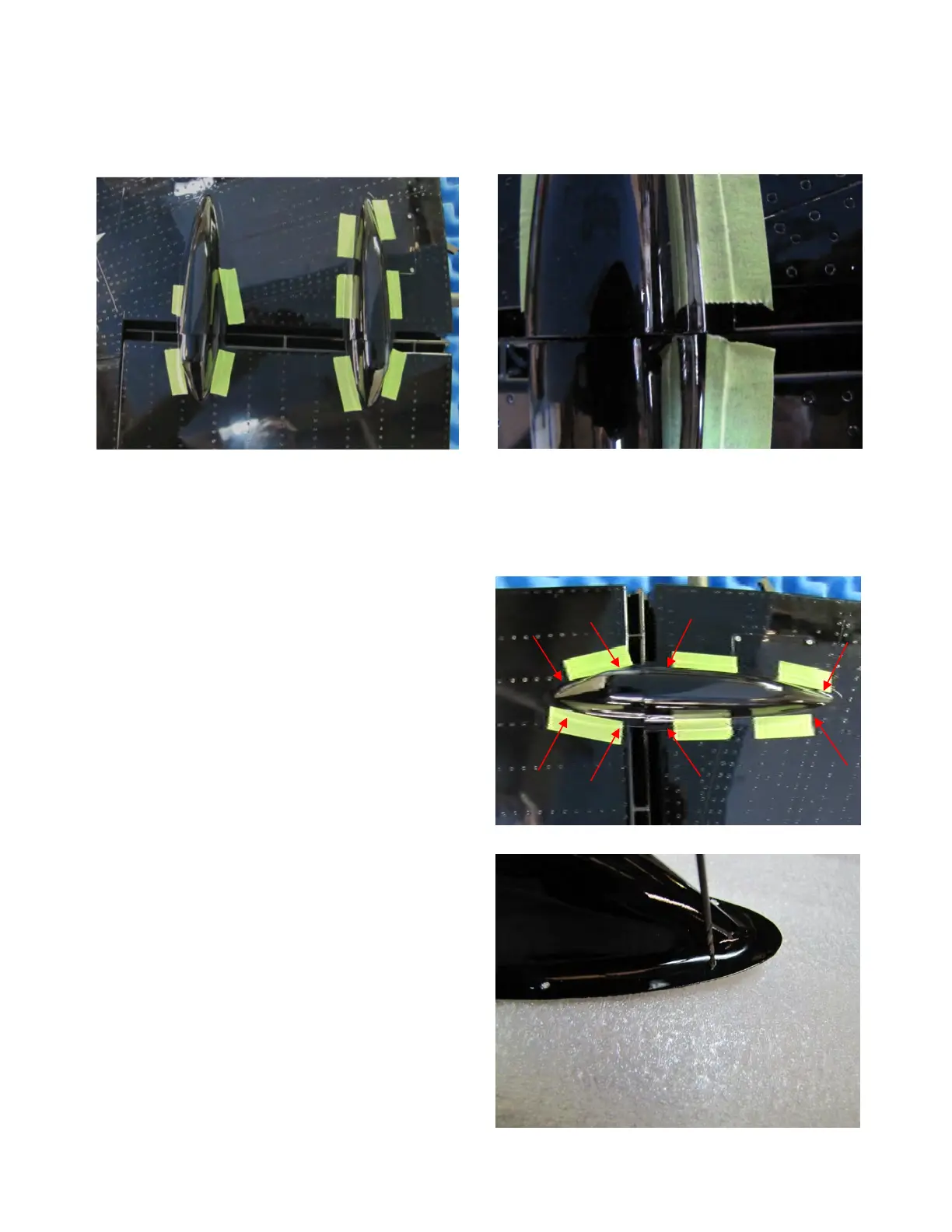

Flap Actuator Fairings
Tape in place the (2) large (6”) and (2) small (3”) Flap Actuator Fairings. The leading edge
of the small fairing is centered over the leading edge of the Flap. The trailing edge of the
large fairing is located by a 1/16” overlapping of the leading edge of the small fairing.
Drill (4) small pilot hole through each of the
Flap Actuator Covers and wing surface.
Locate the holes centered in the flanges of
the covers about where the arrows are. Try
to use locations in line with the rivet marks
on the wing surface. Be sure to avoid the
servo cover area.
Remove the fairings one section at a time
and slightly enlarge the pilot holes to allow
clearance for the attaching screws.
