YAK 130
BVM ©2016 27 Mar. 23, 2016

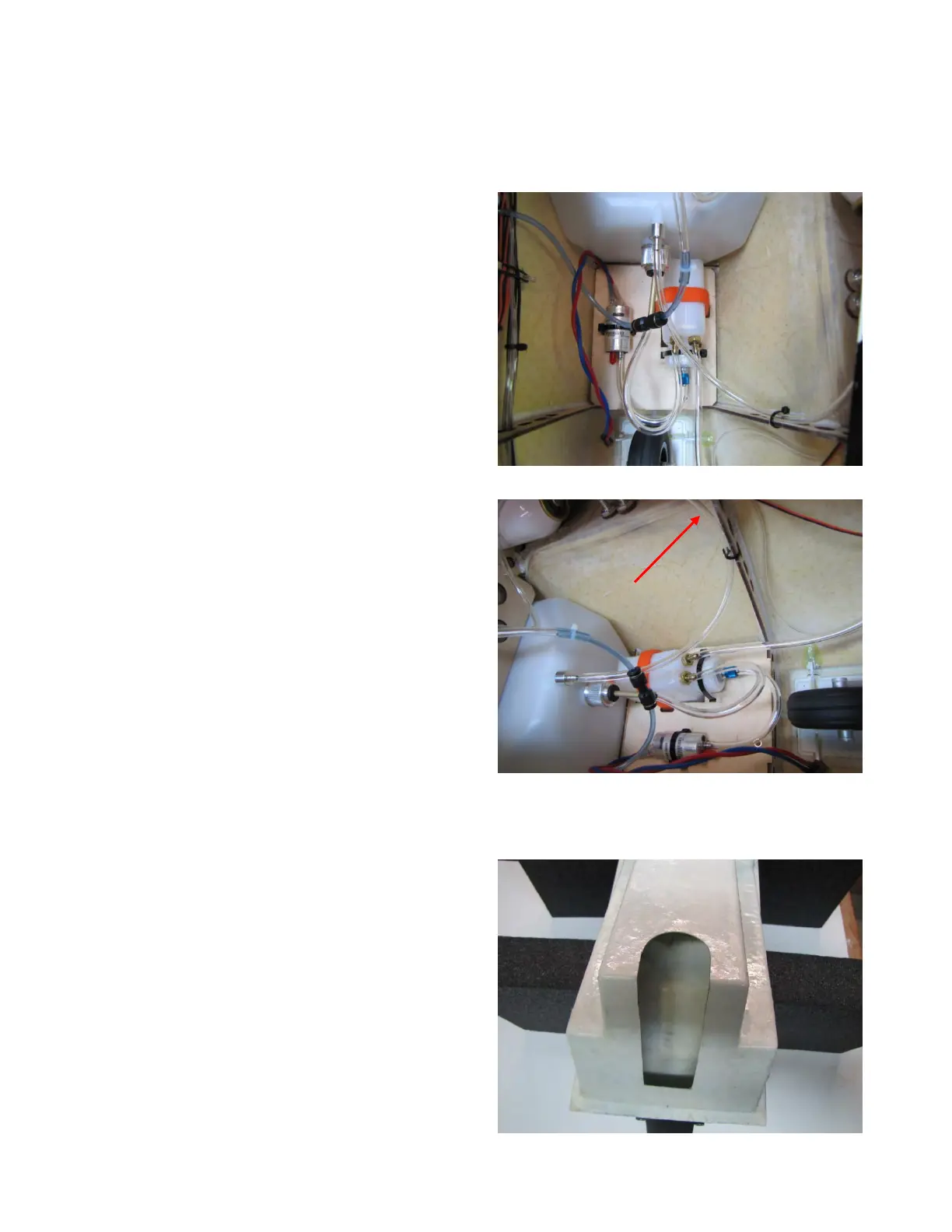

Install the BVM U.A.T. (follow the U.A.T.
instructions) and the turbine Fuel Pump
onto the BVM supplied tray.
Connect the Main Fuel Tank Tubing to the
U.A.T. Connect the U.A.T. to the Fuel
Pump. Make sure the retracted Nose Wheel
does not interfere with either tubing.
NOTE: The routing of the turbine fuel line from
the fuel pump is discussed later in this manual.
Connect the Fuel Fill Line to the Fill Line
fitting on the U.A.T. Make the fuel line long
enough for convenient fueling access..
See also page 33 for alternate fueling servicing.
Cockpit Installation
This opening in the cockpit tub allows
clearance for fuel tank tubing.
