YAK 130
BVM ©2016 53 Mar. 23, 2016
Control Surface Deflections and Expo Settings
NOTE: Use the medium rate travels for the first flight with appropriate rate switches in the mid
position. Expo values vary with pilot preferences.
Control High Rate Expo Medium
Rate
Expo Low Rate Expo
Stabilator (measured at the T.E.) Up 1-5/16”
Down 1-1/16”
Up 17%
Down
21%
Up 1-1/4”
Down 1-1/4”
Up 18%
Down 22%
Up 1”
Down 1”
Up 8%
Down 12%
Aileron (measured at the
Outboard Tip)
+/- 3/4”
10% /
10%
+/- 5/8”
10% / 10%
+/- 1/2”
10% / 10%
Rudder (measured at the Top)
+/- 1.25”
10% /
10%
+/- 1”
8% / 8%
+/- 3/4”
0% / 0%
Note: The BVM Demo plane is setup using the following Expo percentages. Positive values
are used on Spektrum and JR radios, Futaba
uses negative.
Flaps Take Off 3/4”
Landing 2”
Note: Measure from fuselage wing root fairings
Stabilator= Neutral at 2” from fuse top.
A= Up To pitch nose up
B= Down To pitch nose down

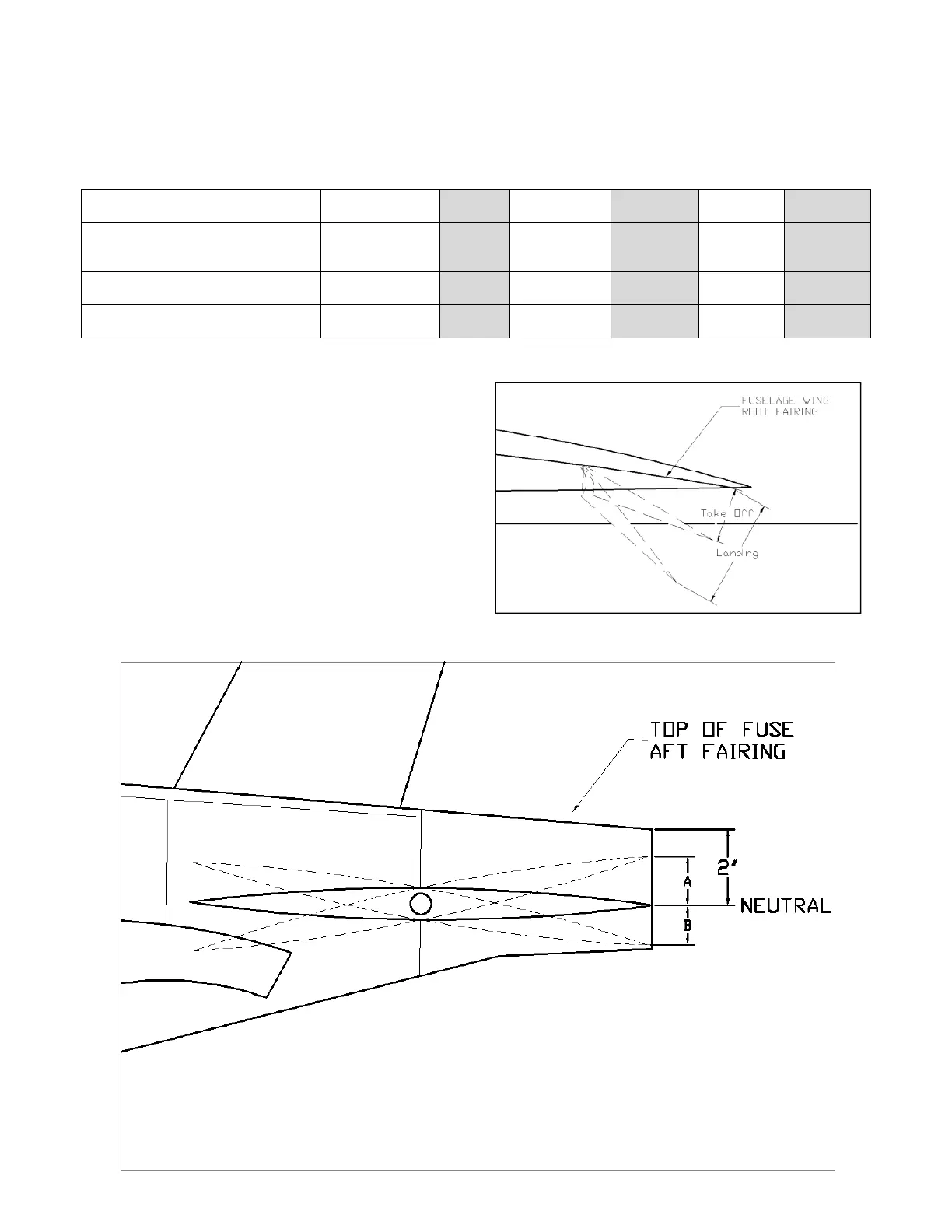

Flap Deflections
Stabilator Deflections
