YAK 130
BVM ©2016 44 Mar. 23, 2016
Radio Equipment Installation
Receiver

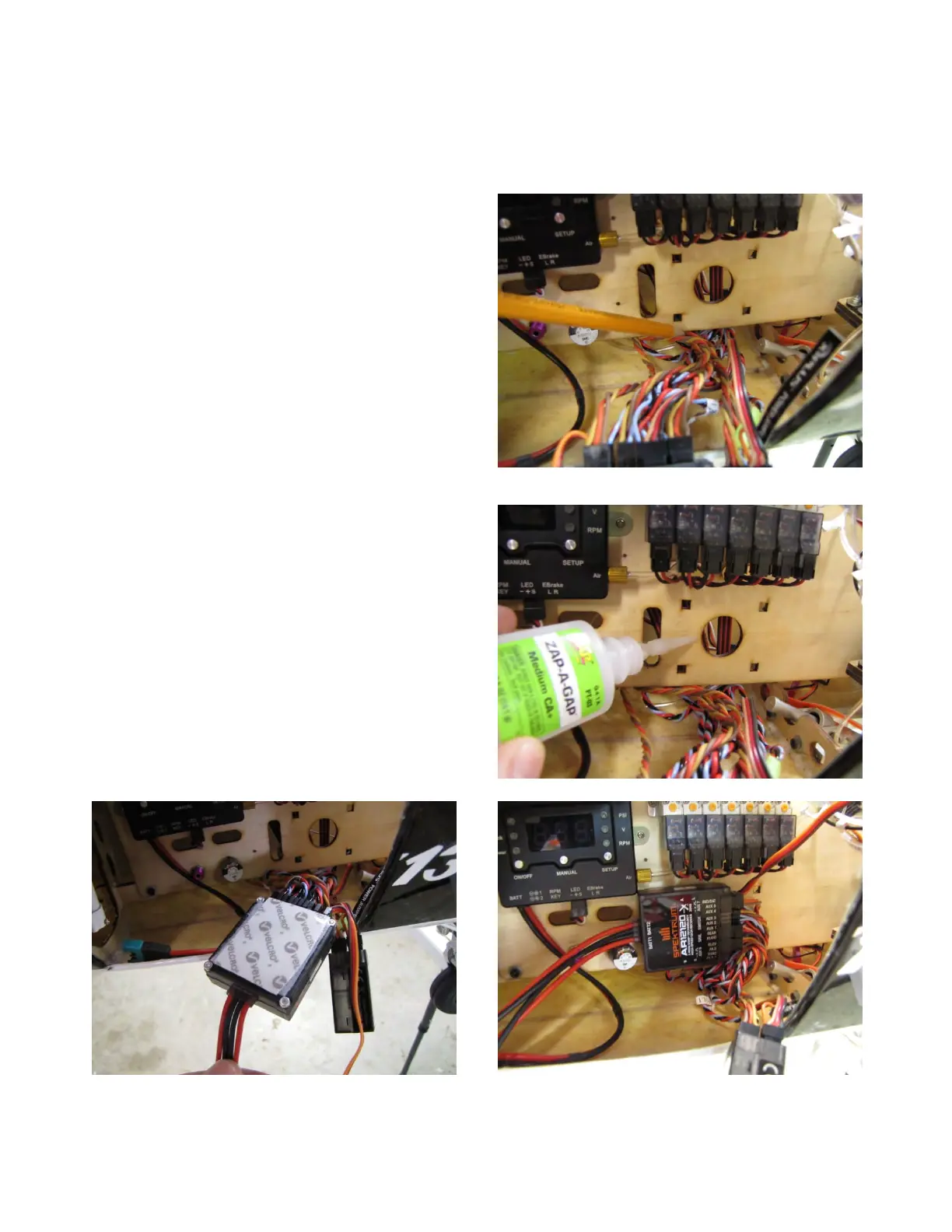

Route the Central Controller’s wires under
the plywood former as shown. This allows
the RX to be mounted to the former.
Apply a Zap finish to the plywood former to
prepare the surface for adhesive backed
Velcro.
NOTE: It may be necessary to use a servo
extension wire from your ECU throttle slot to
the RX. For our model we used a 24” servo
extension wire.
Connect all your RX wires as recommended by the instructions for your receiver
Apply adhesive backed Velcro to your receiver and mount as shown.
