YAK 130
BVM ©2016 34 Mar. 23, 2016

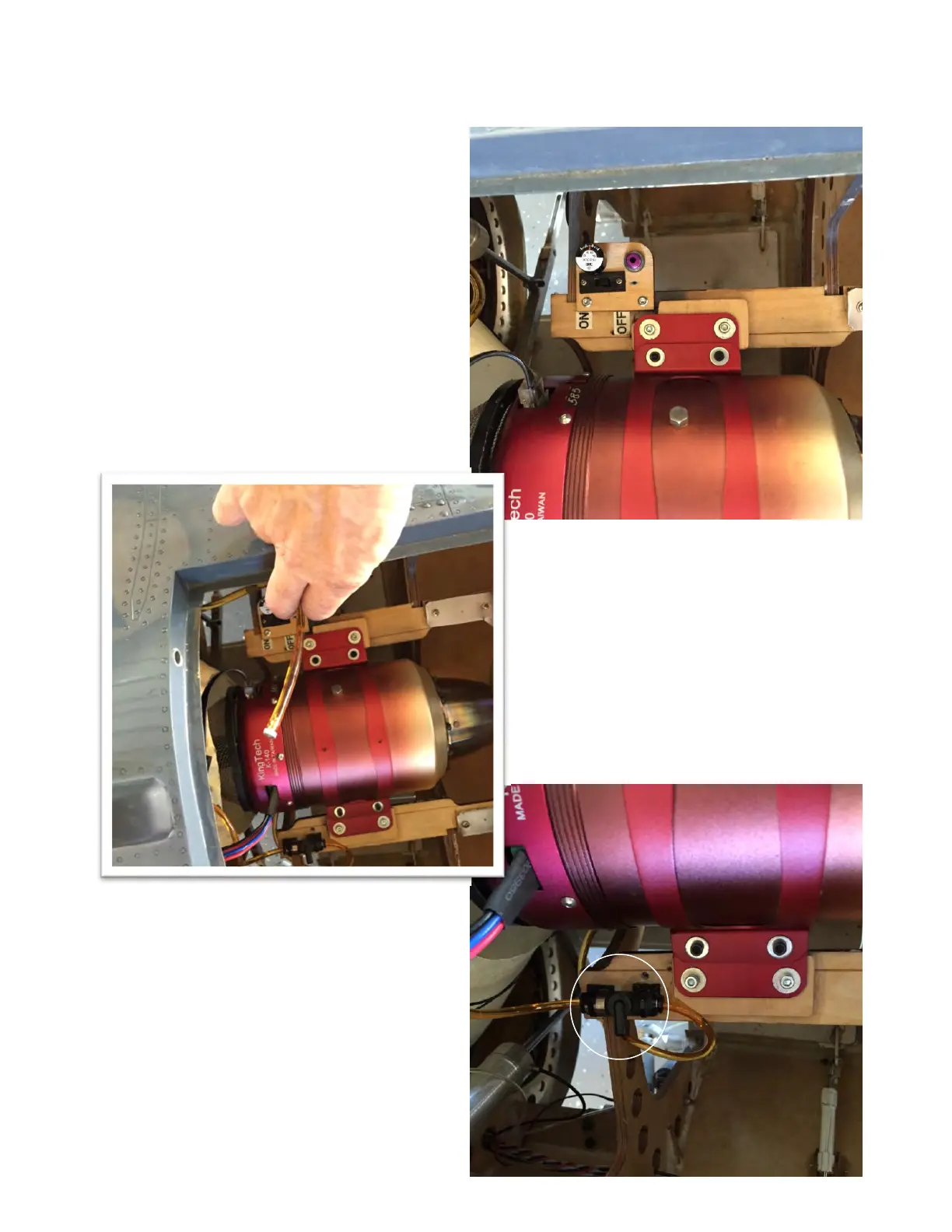

Alternate Equipment Service Location
With Speed Brake Hatch Removed
Note: Spacer blocks under Turbine
mount are not required for production
models.
The Air Fill Valve along with the Air Pressure
Gauge and Receiver On-Off Switch can be
relocated to the engine area for an
alternative start-up operation.
The Fuel fill line and the fuel on-off
valve were also relocated to the
same location as shown in the
photos.
