YAK 130
BVM ©2016 30 Mar. 23, 2016

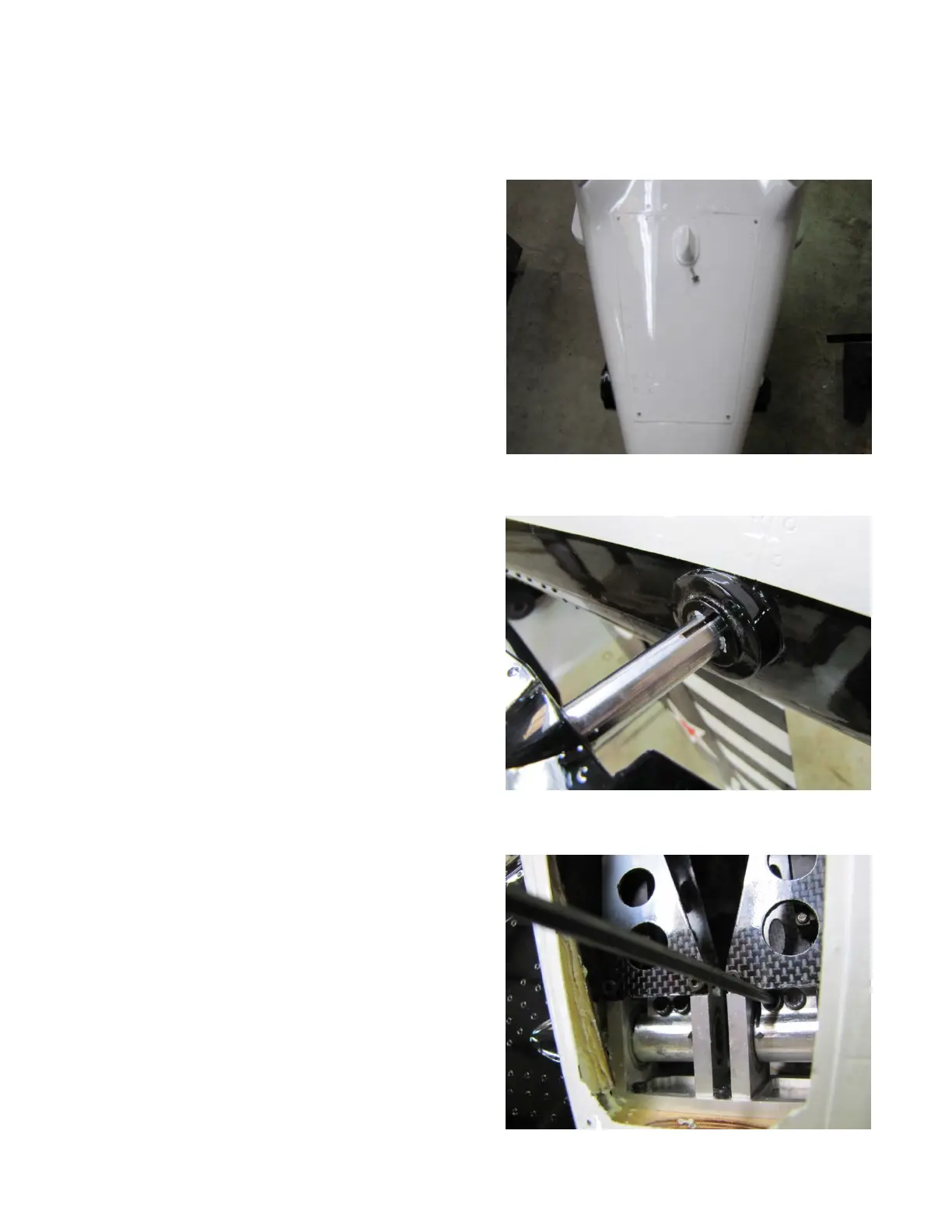

Stab Installation
Remove the access cover on the bottom of
the fuse below the Stab area. The access
cover is held in place with (4) Phillips Head
Screws.
Insert the Stab tube, aligning the slot on the
tube with the pin in the receptacle. Do this
for the left and right Stabs.
Tighten the (2) screws securely on each of
the Stab Brackets with a 9/64 hex wrench.
Replace the access cover.
