BVM Yak 130 - Wing Tip Missile Rails

YAK 130
BVM ©2016 39 Mar. 23, 2016

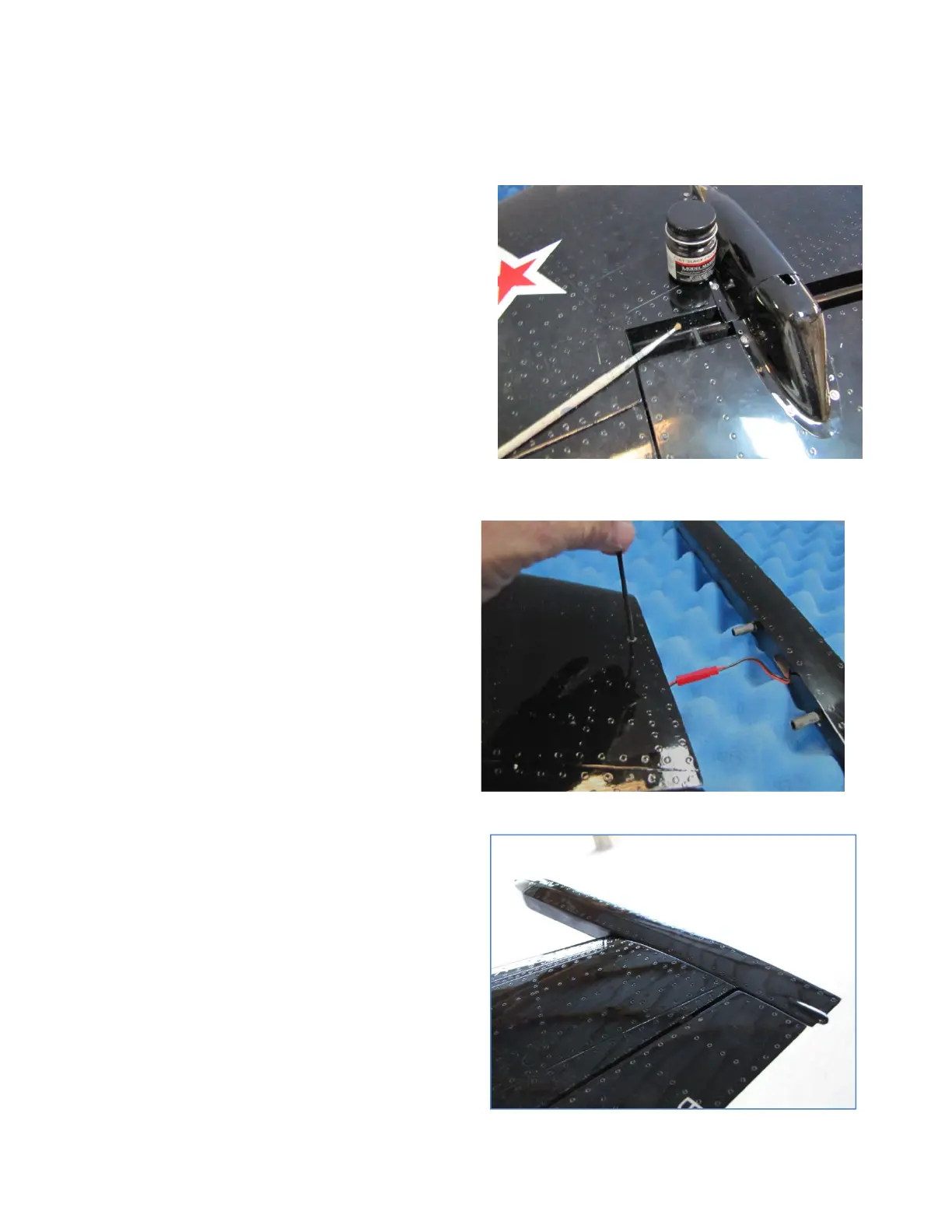

 Use Model Masters (or similar) paint to color
the screw heads and notches in fairings.
Also touch-up the Aileron metal rod and
servo arm.
Wing Tip Missile Rails
 Match up the corresponding Missile Rail to
the corresponding Wing. The Missile Rails
should be scribed with and L or R to
indicate sides. If there is not a L and R, on
the Rail. The proper Rail will line up with
the centered Aileron.
 Loosen the 3/32” SHCS and connect the
electrical wire to the Missile Rail
connection.
 Install the Missile Rail by aligning the (2)
pins and receptacles. Tighten the 3/32”
SHCS to secure the Missile Rails to the
Wing.
 Weigh each wing on an appropriate scale.
The wings should be within (1) ounce of
each other for a good flight trim.
If ballast is needed, glue it into the Aileron
Servo pocket.
