BVM Yak 130 - Joining the Aft Fuse to the Forward Fuse 4 Pin System

YAK 130
BVM ©2016 7 Mar. 23, 2016
Joining the Aft Fuse to the Forward Fuse 4 Pin System
See next page for 6 Pin System.
Sequence:
 Test join the 2 fuse sections.
 Then separate the aft and forward sections.
 Install the Inlet Ducts.
 Then join the aft and forward fuse sections.

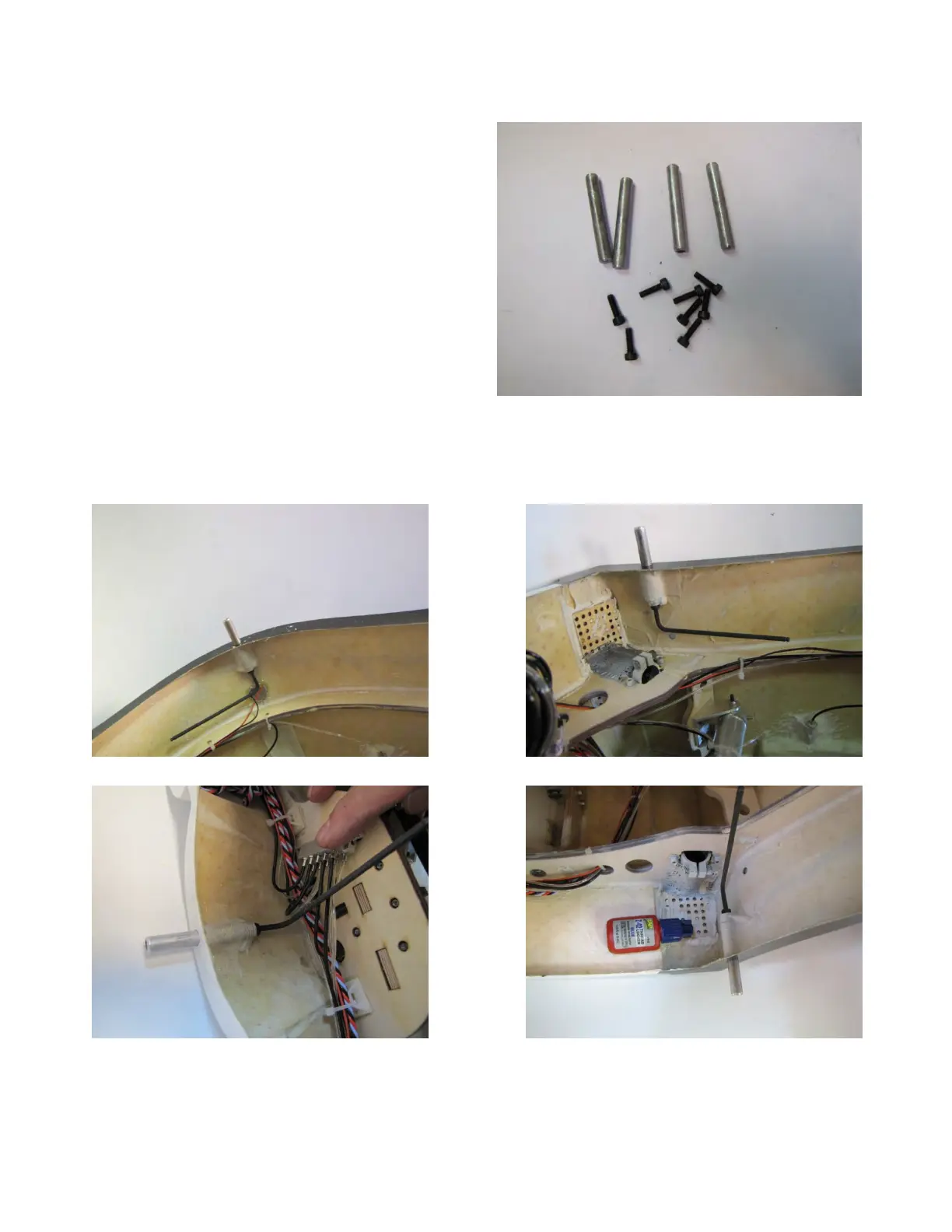

 Access the bag with the (4) fuse aluminum
pins and remove the 3mm SHCS from both
ends of the aluminum pins.
NOTE: Post January 2016 production
models have (6) fuse aluminum pins.
 Install (4) Aluminum Joiner Pins at the 12,
3, 6, and 9 o’clock positions of the Aft Fuse section.
 Apply Z-42 to each 3mm x13mm, then install from the rear into the aluminum pins.
NOTE: A 3mm “L” Hex wrench works well.
Pin @ 12 o’clock Pin @ 3 o’clock
Pin @ 6 o’clock Pin @ 9 o’clock
