YAK 130
BVM ©2016 8 Mar. 23, 2016
For Post January 2016 models- 6 Pin System
Install (4) Aluminum Joiner Pins at the 12, 3, 6, and 9 o’clock positions of the Aft Fuse
section. See previous page photos.
Apply Z-42 to each 3mm x13mm, then install from the rear into the aluminum pins.

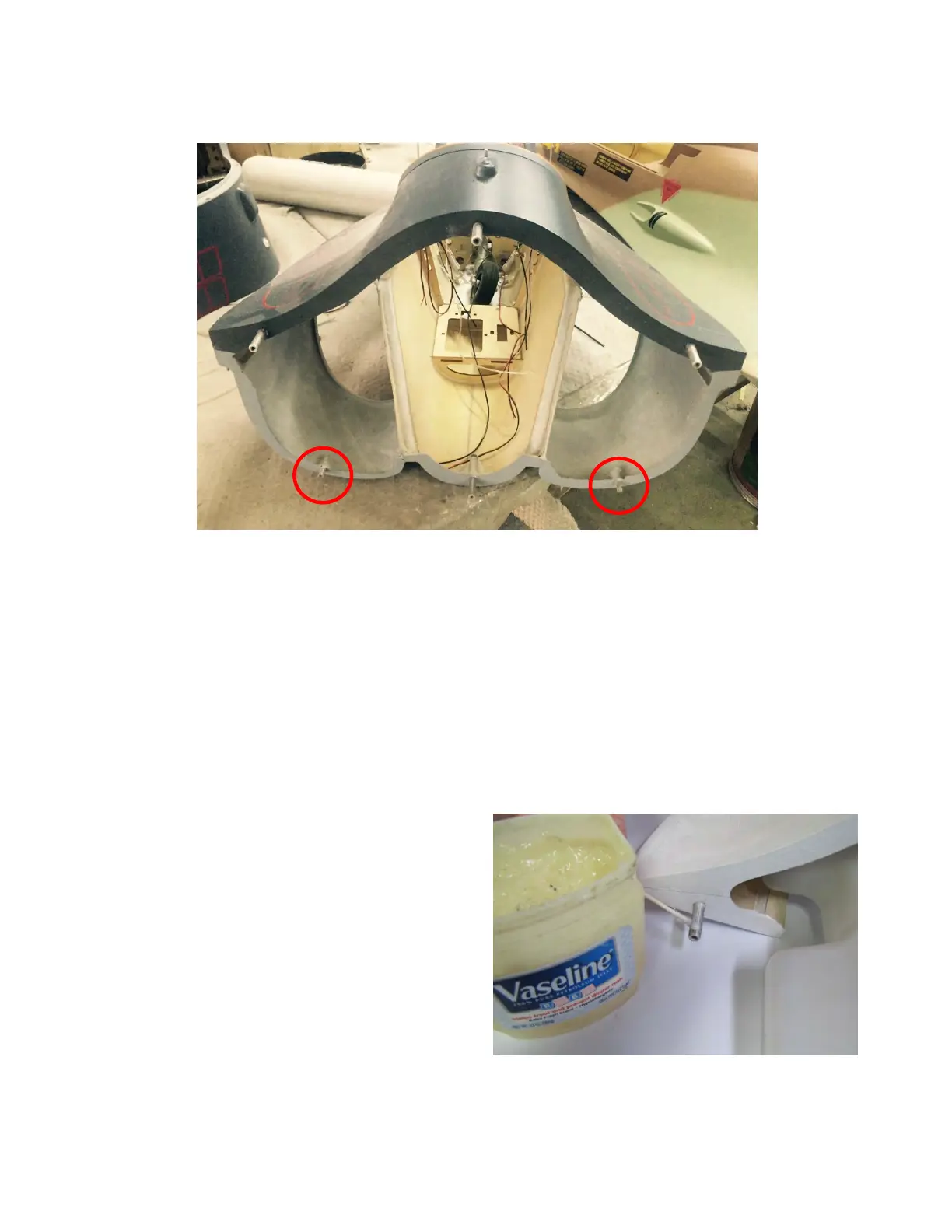

Install the final (2) Aluminum Joiner Pins at the 5, and 7 o’clock positions of the Forward
Fuse section. This is necessary because the inlets will block access to the pins from the
front.
Apply Z-42 to each 3mm x13mm, then install from the front into the aluminum pins.
For all models
Apply Vaseline to the alignment pins to
aid assembly.
On a flat, foam covered surface, carefully align the pins in the Aft section with their
receptacles in the Fwd section and slide the fuse halves together and install the remaining
3mm SHCS from the Fwd section. You need to move the Air Tanks to access the 3 and 9
o’clock position screws..
