YAK 130
BVM ©2016 18 Mar. 23, 2016

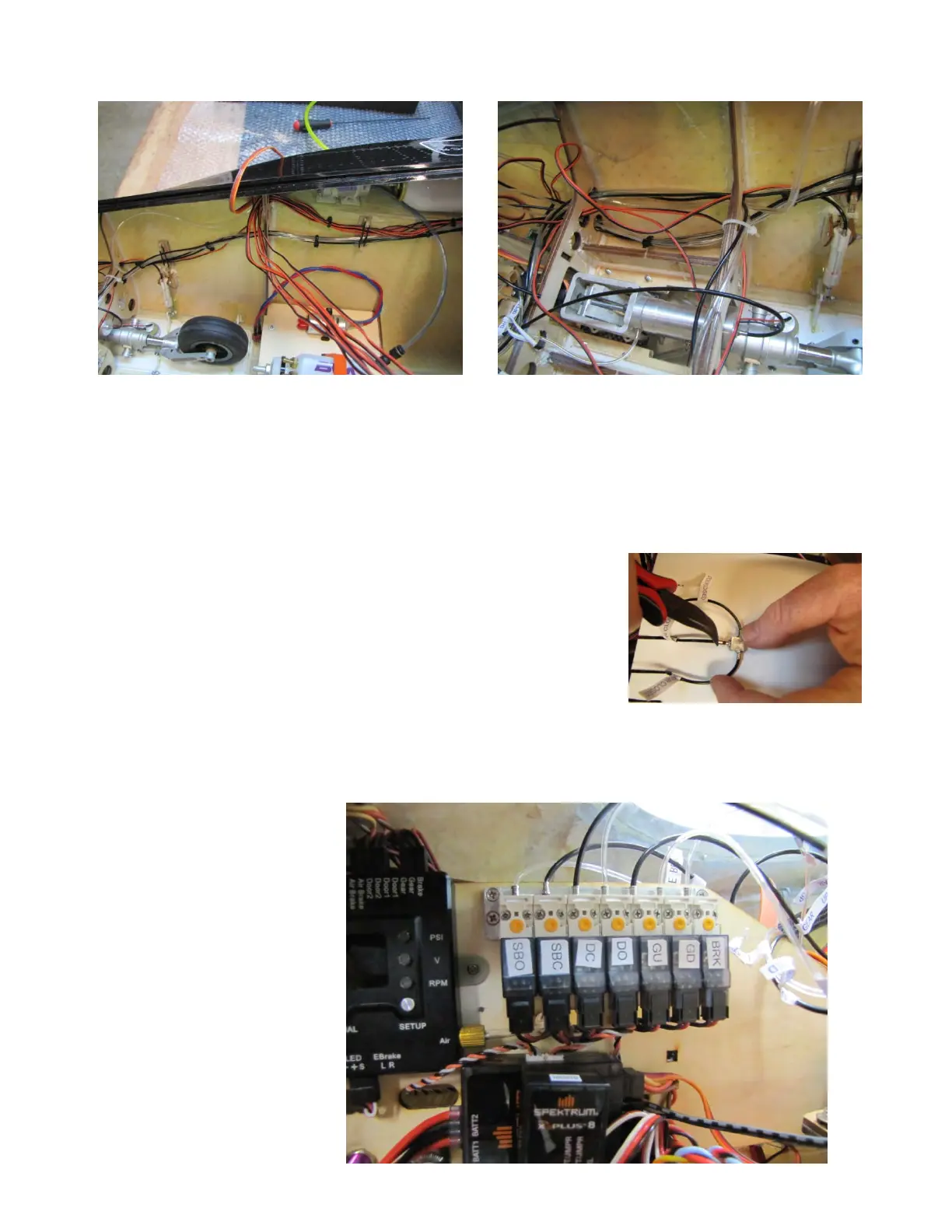

Use 4” Tie Wraps and BVM “O” Clips to secure the Air Lines. Continue to route forward as
shown.
Connect the Air lines to the Air Valves
Connect the clear “BRAKE” line to the top of the Brake Air Valve. Use the 2mm Air Line
Collars provided to secure the Air Line to the Valve.
Slide the chrome collar over the tube; slide the tube onto
the fitting, slide the collar over the fitting to secure. Do
not allow the tubing to slide too far over the barb.
Important! Do not use wire cutters to grab the collar, they
will crush and damage the fitting.
Hint: Warm the tubing with a heat gun to help the collar
slide over the tubing.
Connect the black Air Line labeled “THEN TAKE IT BACK” to the top of the Speed Brake
Close Air Valve.
Connect the clear Air Line
labeled “RELEASE
BRAKE” to the top of the
Speed Brake Open valve.
From Left to Right:
Speed Brake Open
Speed Brake Close
Doors Close
Doors Open
Gear Up
Gear Down
Brake
To Next Page
