Fuel/Smoke Tank
NOTE: Please read Cockpit installation portion
of this manual to have an understanding of the
clearances for the tubing.

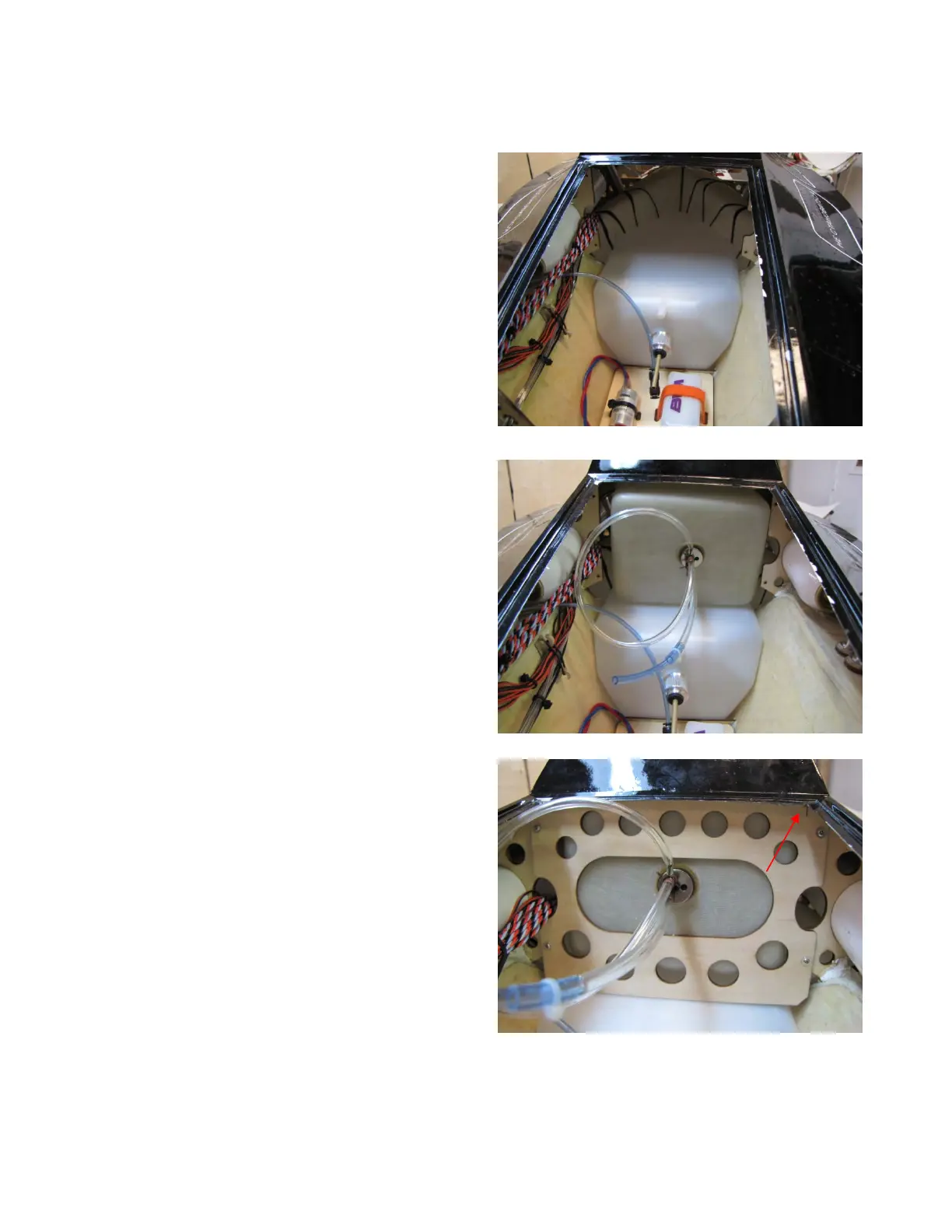

Place the Main Fuel Tank into position.
Place the Smoke Tank into the space
above the Main Tank. Make sure to identify
the overflow vent tube from the clunk tube.
Install the Smoke Tank Retention Former
using the (4) Phillips head screws. Notice
the up arrow.
IMPORTANT:
Check that the clunks flop around freely in the
tanks. Re-check this if the model has ever been
held or transported nose down.
Up Arrow
