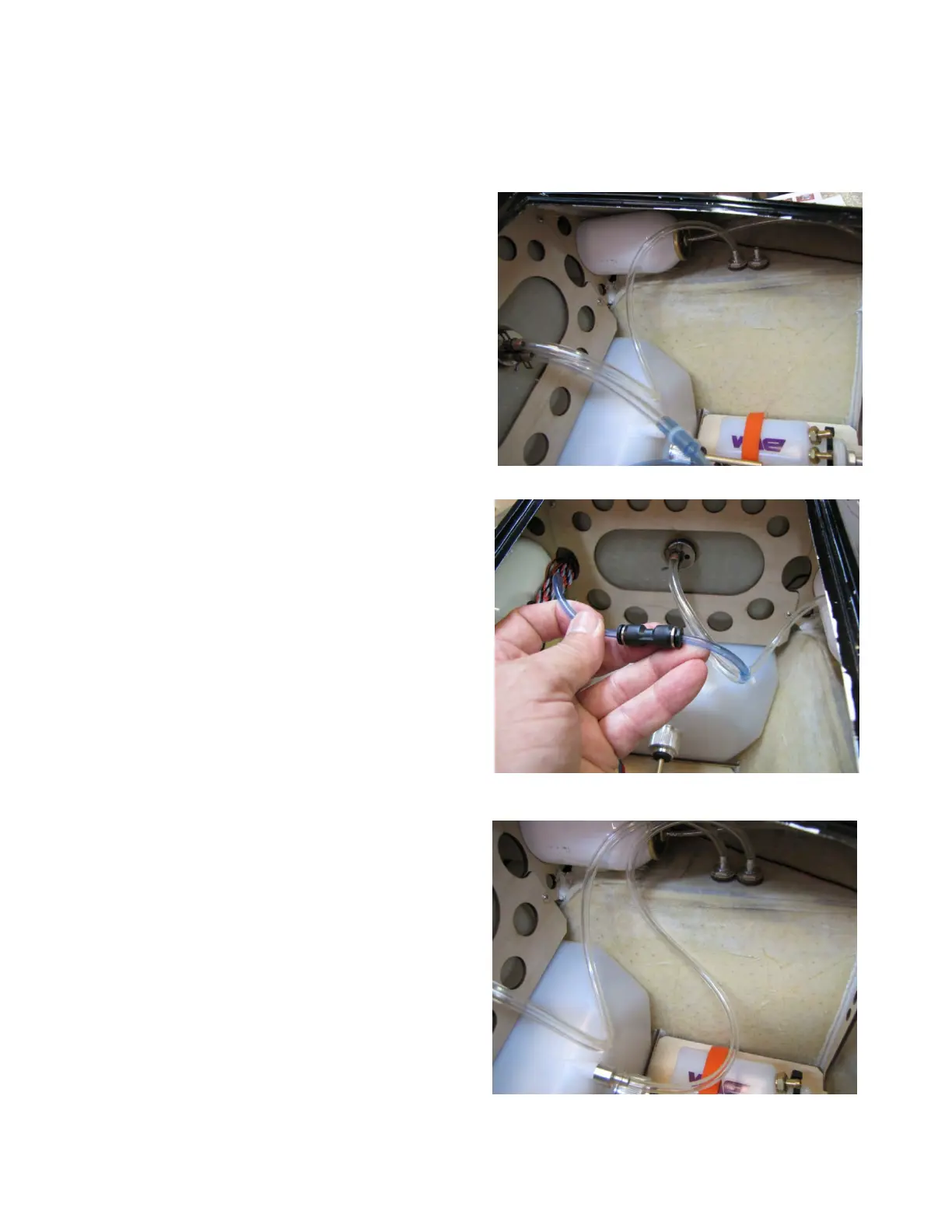

Connect the Smoke Tanks overflow/vent
tubing to the aft Flush Mount fitting.
Connect the Clunk line tubing (the tube with
the blue tubing) with the Festo fitting from
the smoke pump. Use enough tubing to
allow clearance for the Cockpit Tub.
Connect the Main Fuel Tank overflow/vent
tubing to the forward Flush Mount fitting.
