YAK 130
BVM ©2016 31 Mar. 23, 2016
Turbine Installation

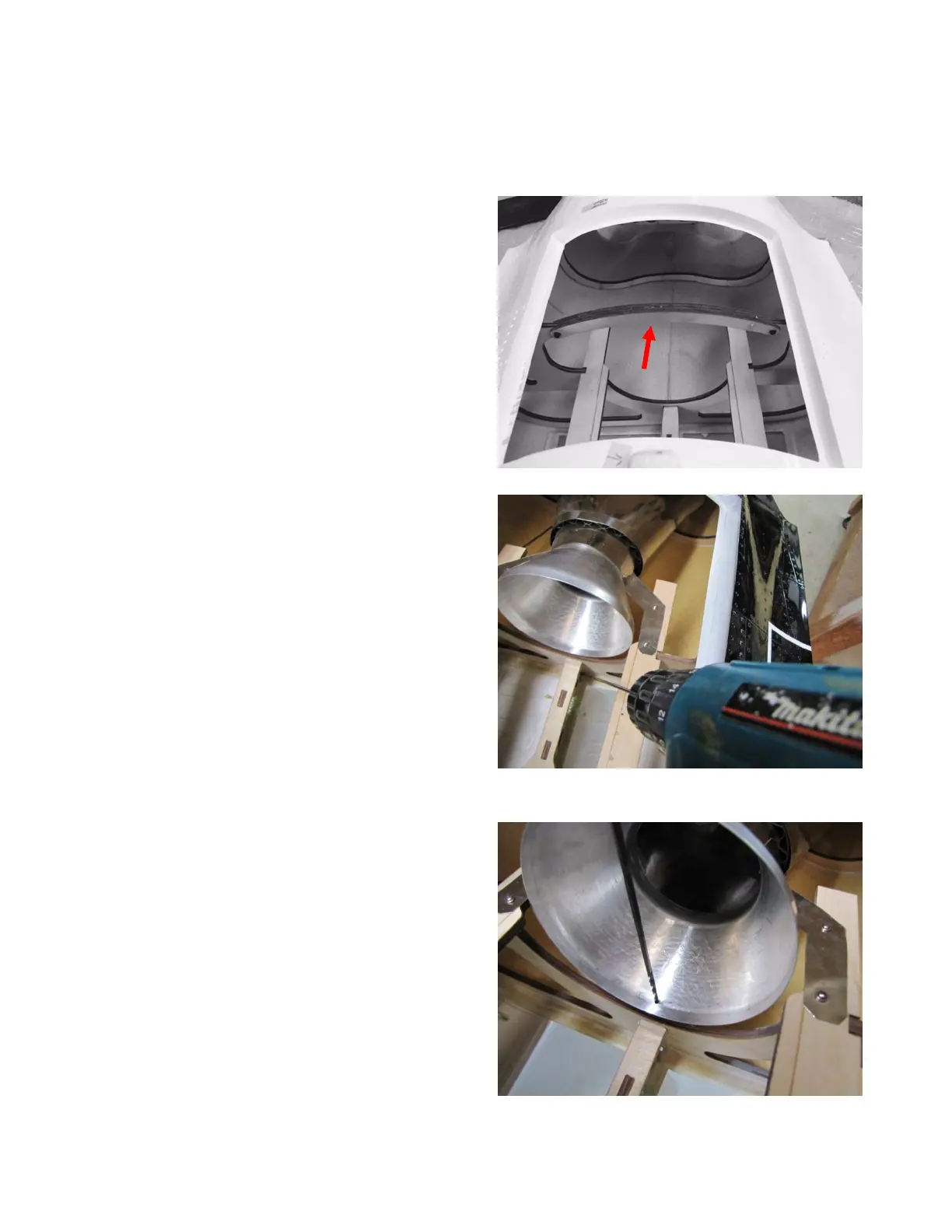

Remove the Arch Brace shown in the
photo. It can be re-installed after the engine
is mounted.
Drill a small hole (1/16”-3/32”) on each side
of the main gear door formers for accidental
fuel over flow exit points.
With the same drill. Drill through the
Tailpipe bell and the bottom of the fuse for
another fuel spill exit point.
