YAK 130
BVM ©2016 32 Mar. 23, 2016

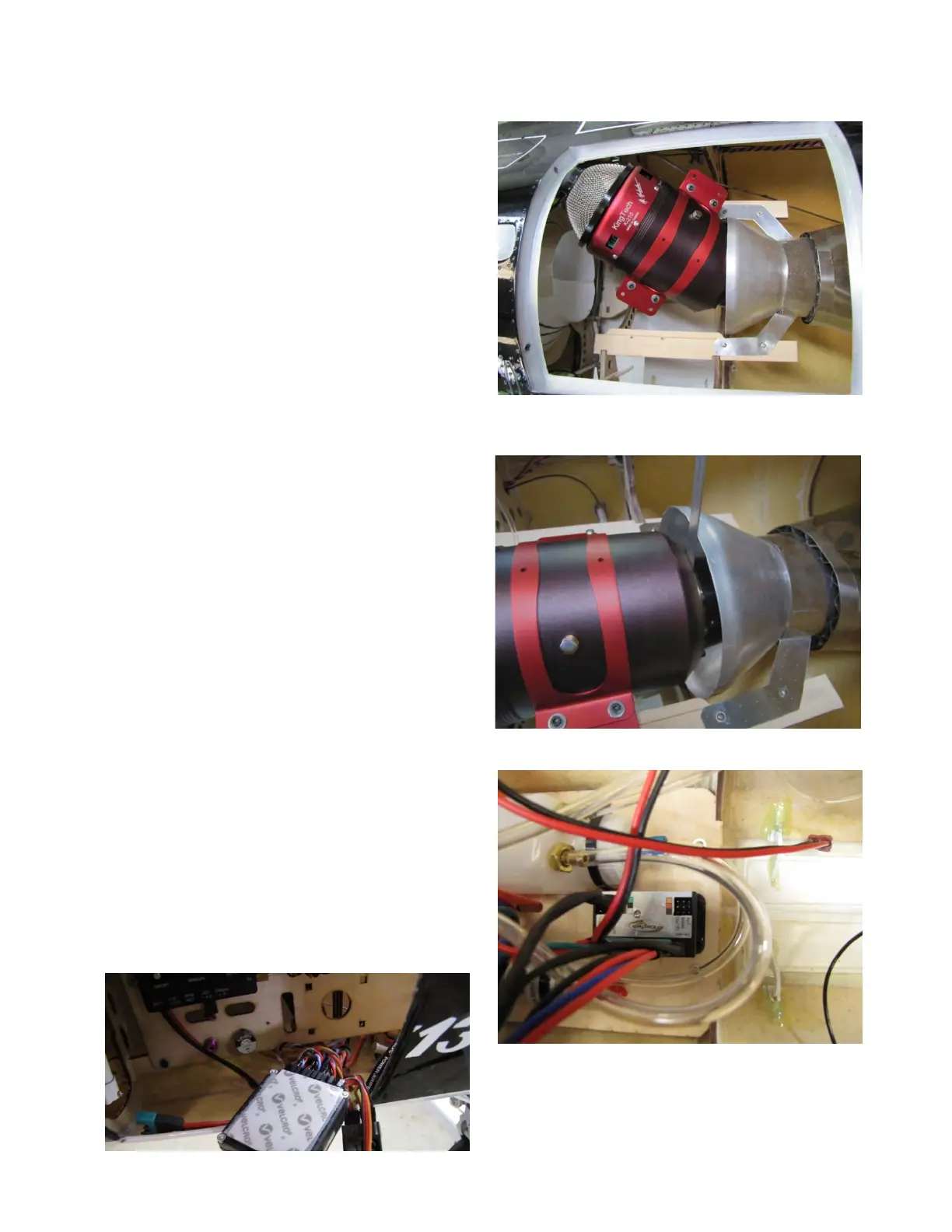

Install the F.O.D. Screen onto the turbine.
Then angle the motor down into the tailpipe
and then straighten it out into the Inlet.
Adjust the motor per the instructions
provided with your turbine. Look through
the tail pipe to assure that it is positioned
center and straight in the tailpipe opening.
Mark and drill pilot holes for the turbine
mounting screws supplied with your turbine.
Coarse thread wood screws suffice to
mount the turbine to the plywood. After
screws have been set, remove each and
treat the hole with thin C.A. to toughen the
threaded holes in the plywood.
To install the turbine ECU, BVM used the
space on the UAT mount tray. It is
convenient and does not interfere with the
cockpit tub.
Photo shows location of the factory installed Air
Fill Valve and Air Pressure Gauge in the
forward accessory hatch.
To Next Page
