63
Note location of
power cable
routing.
Power connector
socket
Replacing the Ignition Module

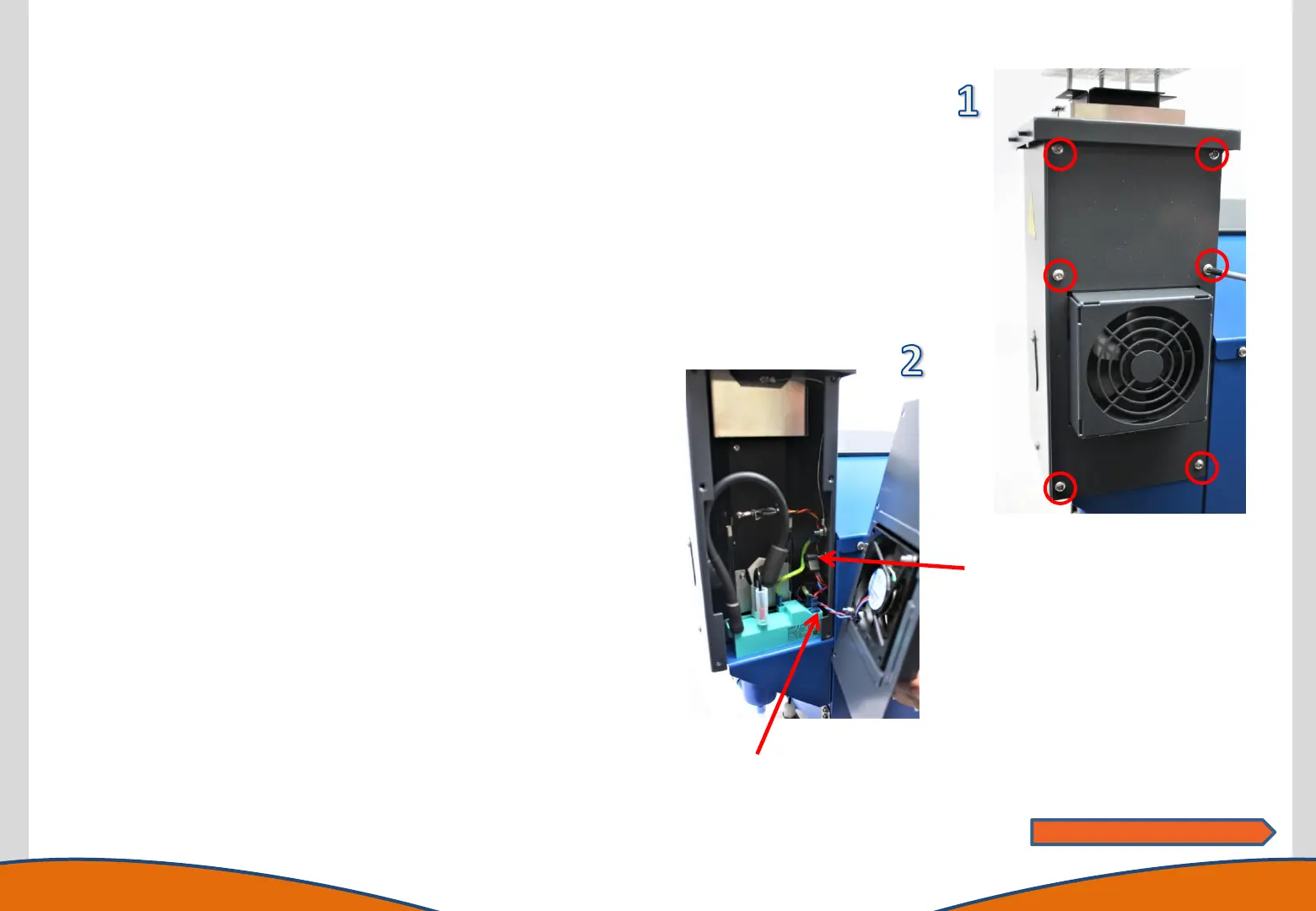

1. Access the rear of the chimney by removing the 6 retaining screws
using a T20 torx driver.
2. Unplug the chimney fan from the connection on the chassis side wall.
Note the cable location (tucked down the side of the ignition module
– it is vital the cable is placed back in this position). Place the
chimney rear plate assembly to one side.
3. Remove the HT cable boot from igniter and remove the screw
securing the cable using a T20 torx driver.
4. Use a 7mm spanner to remove the nut securing the earth cable to
the chassis. Remove the earth cable from the stud.
5. Disconnect the power cables connected to the module.
6. Use a flat screwdriver to press in the release tab on the left hand side
of the module, carefully ease the module away from the mounting
bracket. (Alternatively, the whole bracket and module may be
removed in one piece by removing the 2 bracket securing screws on
the underside (near the burner thumb screws)).
7. Replace the module and reassemble in reverse order taking care to
ensure the chimney fan power cable is returned to its location down
the side of the module.
