Replacing the Chimney Fan
1. Access the rear of the chimney by removing the
6 retaining screws using a T20 torx driver.
2. Unplug the chimney fan from the connection
on the chassis side wall. Note the cable location
(tucked down the side of the igntion module –
it is vital the cable is placed back in this
position).
3. Remove the 2 fan securing nuts using a 7mm
A/F spanner.
4. Replace the chimney fan ensuring the
orientation is as pictured.
5. Reassemble the instrument in reverse order,
ensuring the chimney power cable is tucked
down the side of the ignition module.

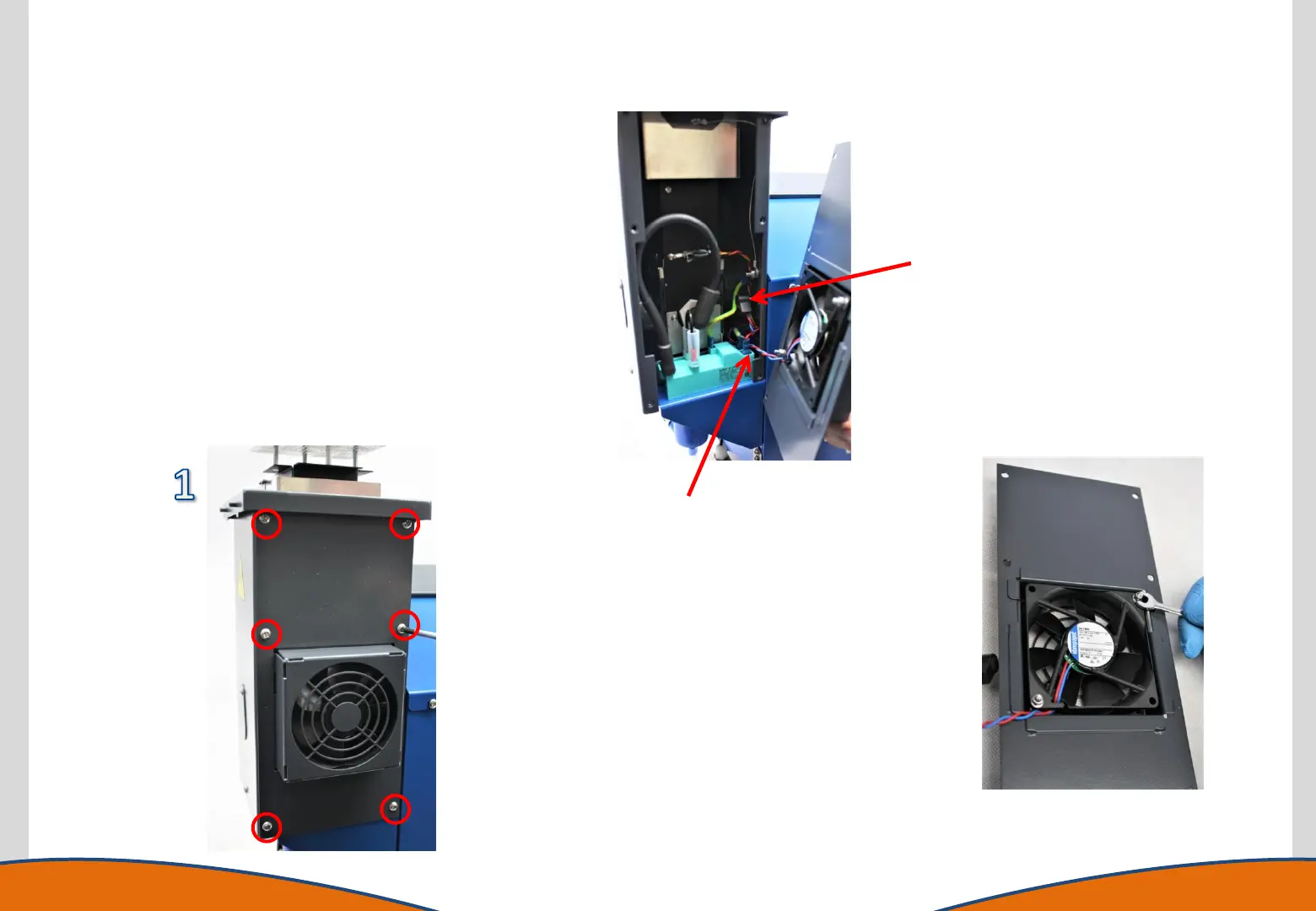

Note location of
power cable
routing.
Power connector
socket
Note orientation of fan
