Upgrading to mA Output functionality
1. Gain access to the instrument enclosure as previously
described.

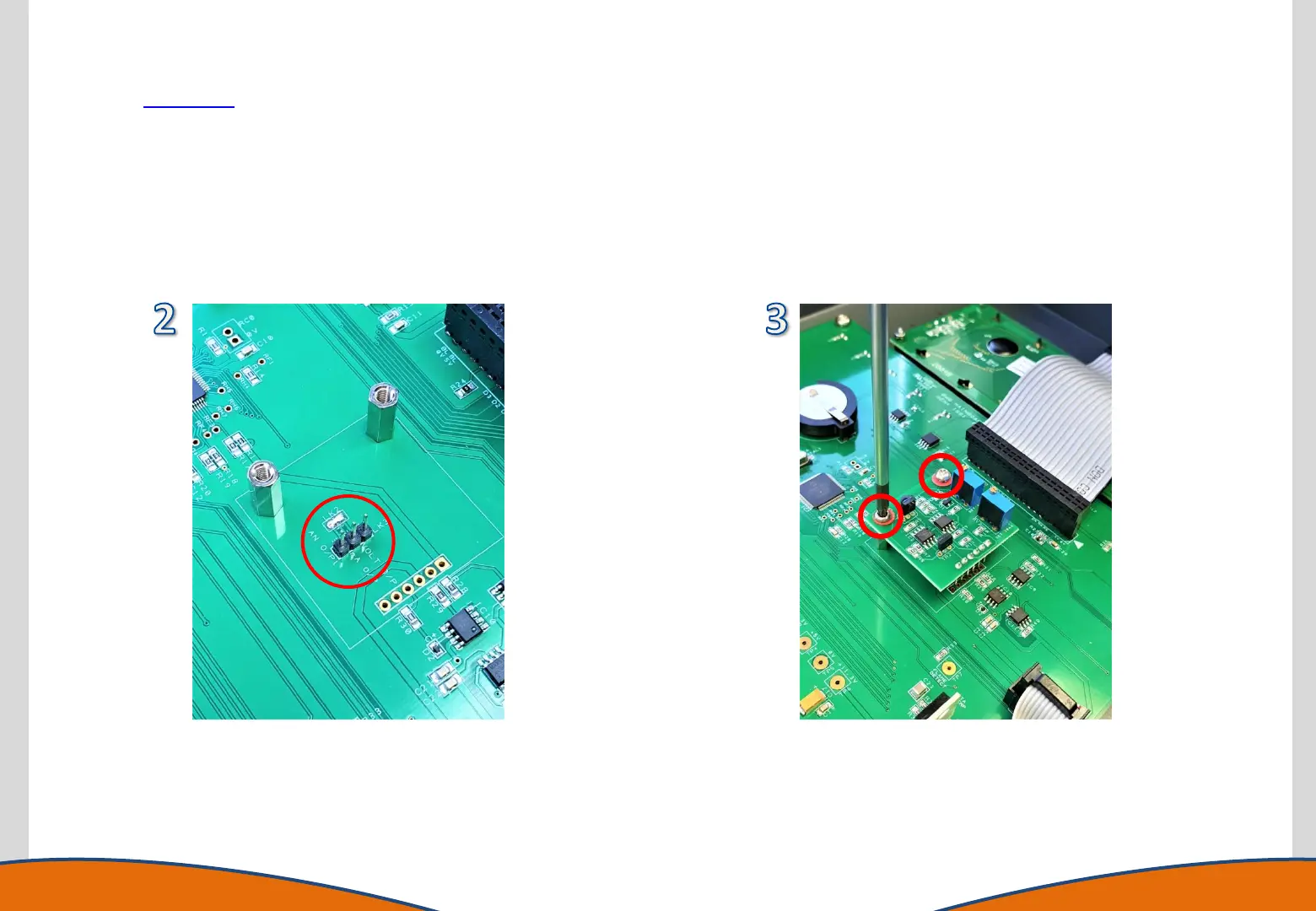

2. Locate the ‘jumper link’ on the motherboard and re-position
it to the 2 alternate pins.
3. Fit the mA interface PCB using the supplied screws and
fasten using a T10 torx driver.
4. Reassemble the instrument in reverse order.
