CAB a3-2 User Manual

19cab Produkttechnik GmbH & Co KG
Item A3 A4 A6
A Label width .5 - 4.6 (12-116) .5 - 4.6 (12-116) 2 - 6.9 (50-176)
Peel-off mode 1 - 4.6 (25-116) 1 - 4.6 (25-116) 2 - 6.9 (50-176)
B Backing width 1 - 4.7 (25-120) 1 - 4.7 (25-120) 2 - 7.1 (50-180)
C Label length .2 - 39 (5-1000) .2 - 39 (5-1000) .24 - 39 (6-1000)
*A4/600 *.2 - 9.8 (5-250)
Peel-off mode .5 - 7.9 (12-200) .5 - 7.9 (12-200) 1 - 7.9 (25-200)
D Gap between labels .08 - 39 (2-1000) .08 - 39 (2-1000) .08 - 39 (2-1000)
E Label thickness .003 - .012 (0.07-0.3)
F Thickness of backing material .003 - .012 (0.07-0.3)
G Distance of the first printing position
from the edge of the backing paper .08 (2) .1 (2.5)
H Distance of the label sensor
from the edge of the backing paper .16 - 2.3 (4-57.5)
I Width of the perforation mark >.2 (>5)
K Height of the perforation mark .08 - .4 (2-10)
L Width of the reflective mark >.2 (>5)
M Height of the reflective mark .08 - .4 (2-10)

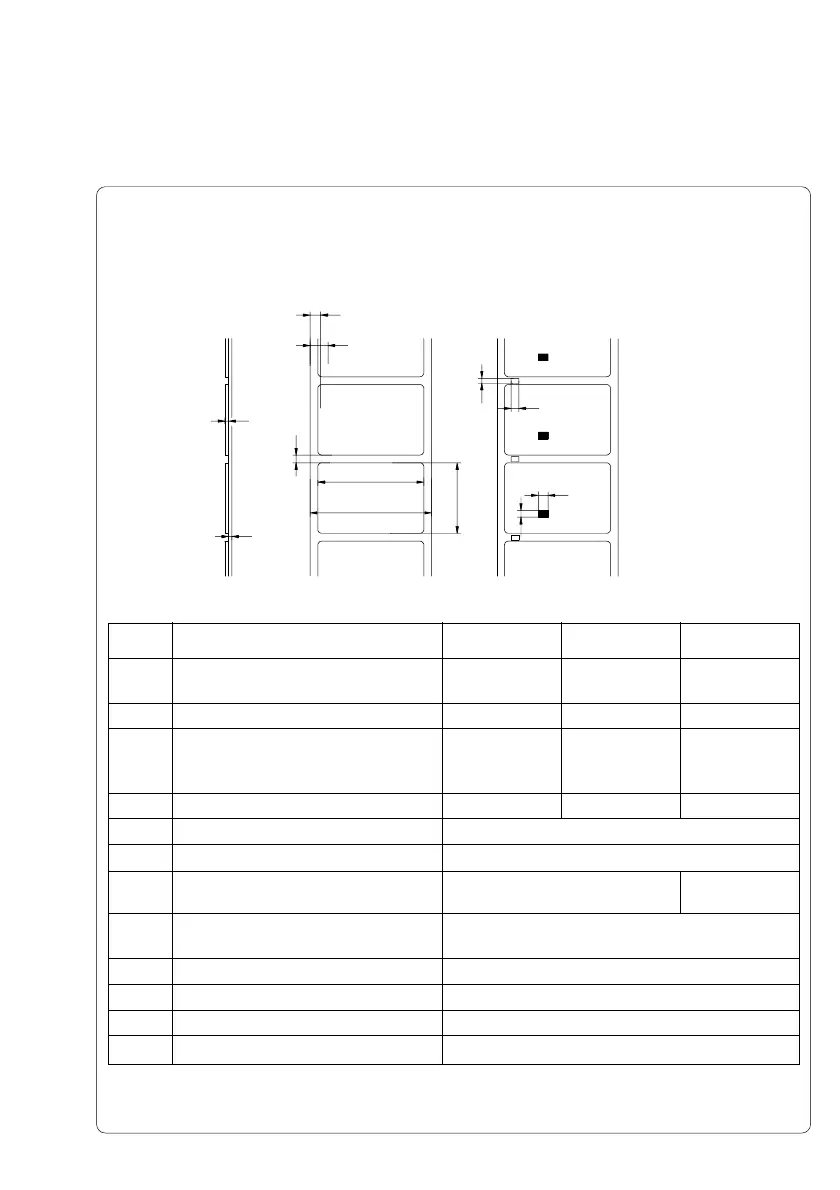

Label / Tag Media Specifications
Label and tag media to be used by the printer must conform to the following
specifications:
Fig. 1 Media Specifications
Table 1 Media values are displayed in inches (values in brackets are mm)
E
F
D
A
B
K
I
C
G
H
L
M
1. Product Description

CAB a3-2 Specifications

General

Brand	CAB
Model	a3-2
Category	Printer
Language	English
