5. Connecting the Printer
Connection to a Computer
As standard, the printer is equipped with a bi-directional parallel interface (3)
and a serial RS-232-interface with a 9 pin connector (4).
For connection to the parallel interface use a suitable parallel interface cable
(1).
Cables for the serial connection (2) are described in appendix B. You can also
find descriptions of the pin assignments for the interface connectors
NOTICE !
For serial connection, make sure the serial interface RS-232 of the printer
is correctly configured to the settings of your computer (see printer
configuration section).
Connect the computer and the printer with a suitable cable and secure the
cable connections with screws provided on the connectors.
CAUTION !
Make sure that all connected computers and their connecting cables are
correctly grounded.
Information for the optional interfaces (RS-422/485, ethernet, USB) can be
found in the documentation for the respective interface.

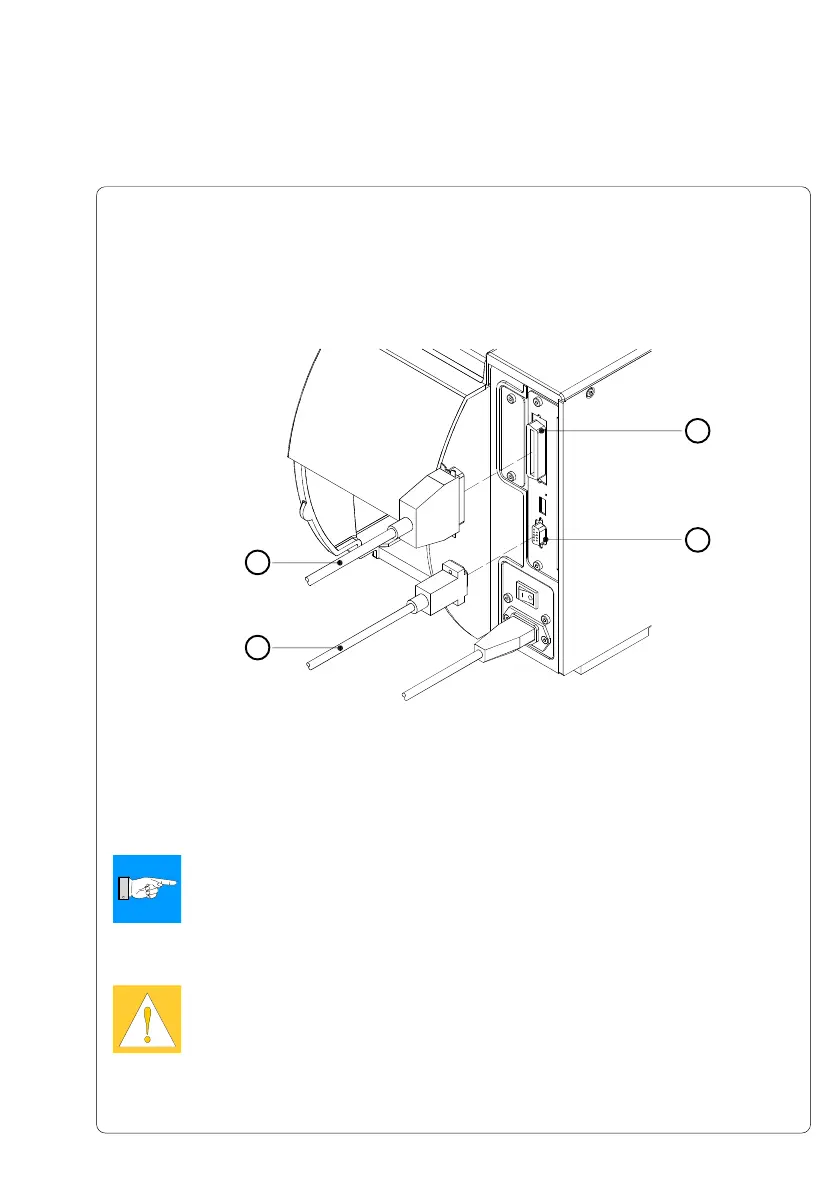

Fig. 5b Computer connection
