89cab Produkttechnik GmbH & Co KG
9. Test Options

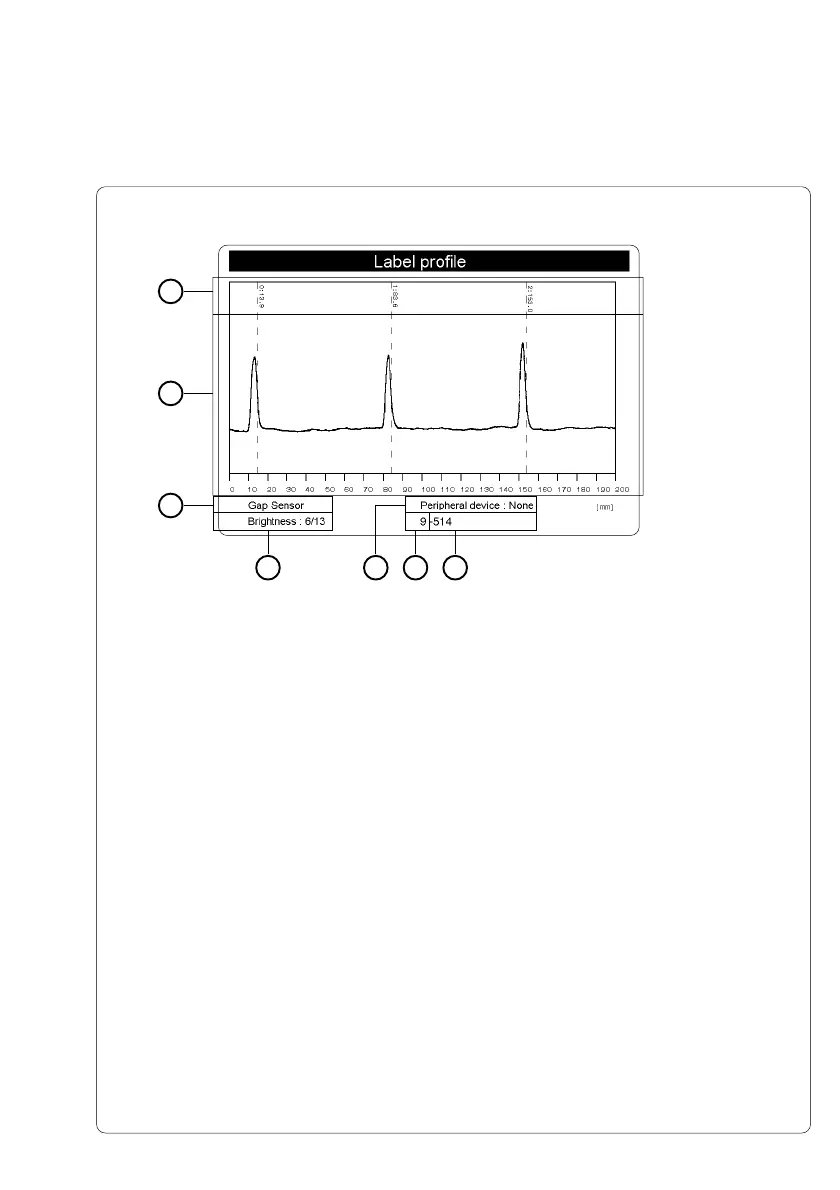

Fig. 9t Label Profile
The meaning of the details shown in the label profile are as follows:
A) Profile of the values measured at the sensor. These values are terms for the
difference in opacity between the media and gap or in the case of the
bottom reflective sensor, the reflectivity between the media and the printed
mark.
B) Coordinates in paper feed direction where media front edges were detected.
C) The method of media recognition (gap sensor or bottom-reflective sensor).
D) The type of peripheral device connected.
E) Settings for use by Maintenance technicians. A more detailed explanation
can be found in the Service Manual.
F) Settings for use by Maintenance technicians. A more detailed explanation
can be found in the Service Manual.
G) Settings for use by Maintenance technicians. A more detailed explanation
can be found in the Service Manual.
B
A
E
C
F GD
