Using Ares

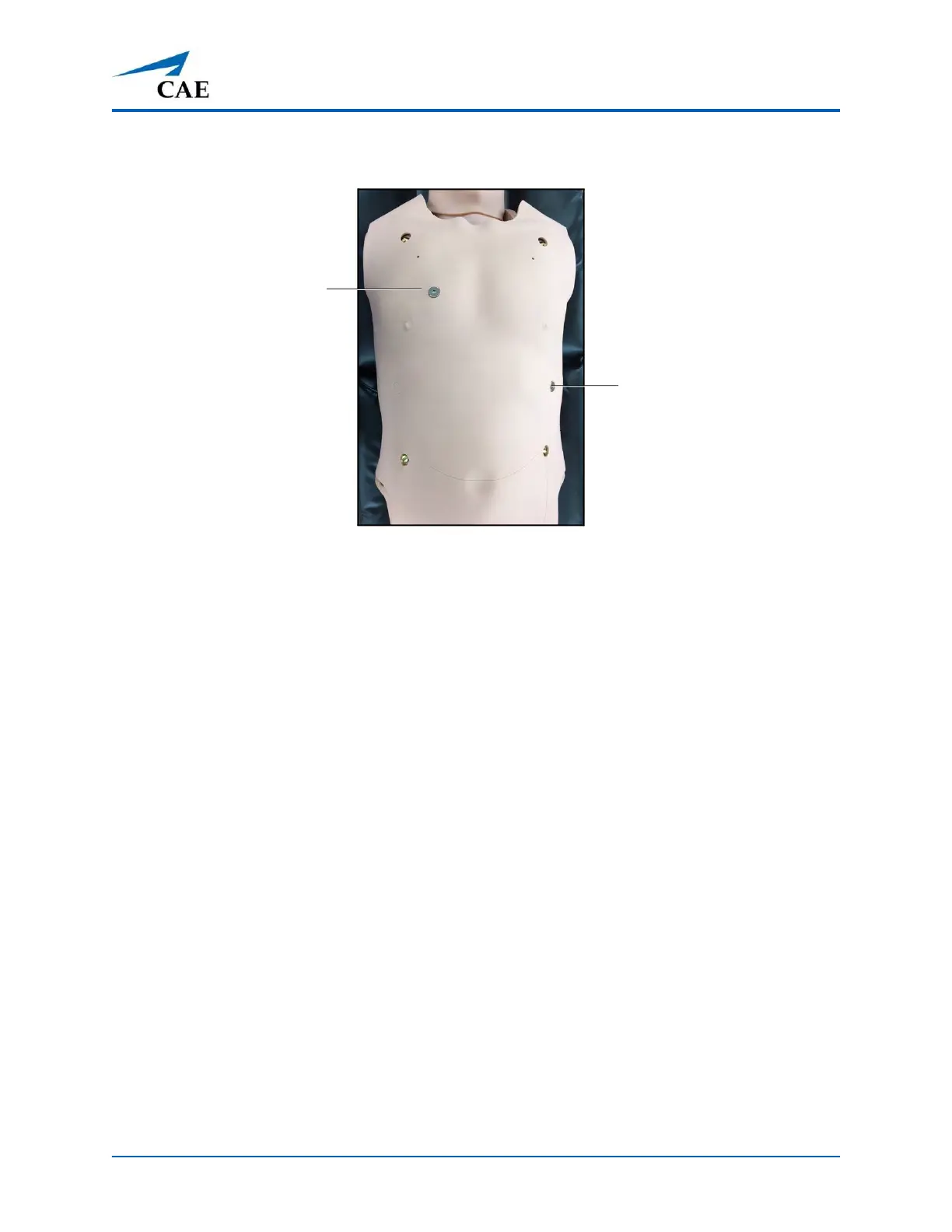

The following surface chest images identify the location of the magnetic snaps.
Ares Torso
An AED can use the ECG signal to determine if a shock is necessary. An electrical shock can be
delivered to the manikin and will be absorbed by the cable and SymDefib box. It does not travel to
the manikin or along the training pads. The SymDefib box measures and reports the energy delivered
via the Maestro software.
When demonstrating proper pad placement, learners should attach the SymDefib pads in the
appropriate locations on the manikin: one pad on dorsal connection and one on ventral connection.
Magnetic snap
Magnetic snap
