CAE CathLabVR Simulator - Cathlabvr Cart; Monitor Pole; Extension Tray; Cathlabvr Shelf

Equipment Overview
5
PN: 905K400652
CathLabVR Cart
The CathLabVR cart is the structure upon which the CathLabVR manikin, computer and shelves is
secured. The monitor pole is attached to the back of the cart and the computer is stored inside the
cart. The manikin, shelf and trays attach to the top of the cart.
Monitor Pole
The monitor pole attaches to the cart structure and contains a monitor arm for mounting the two flat
screen monitors.
Extension Tray
The extension tray attaches to the main cart structure and serves as a resting place for accessories
prior to use or insertion.
CathLabVR Shelf
The CathLabVR contains a shelf upon which the Control Box is placed.

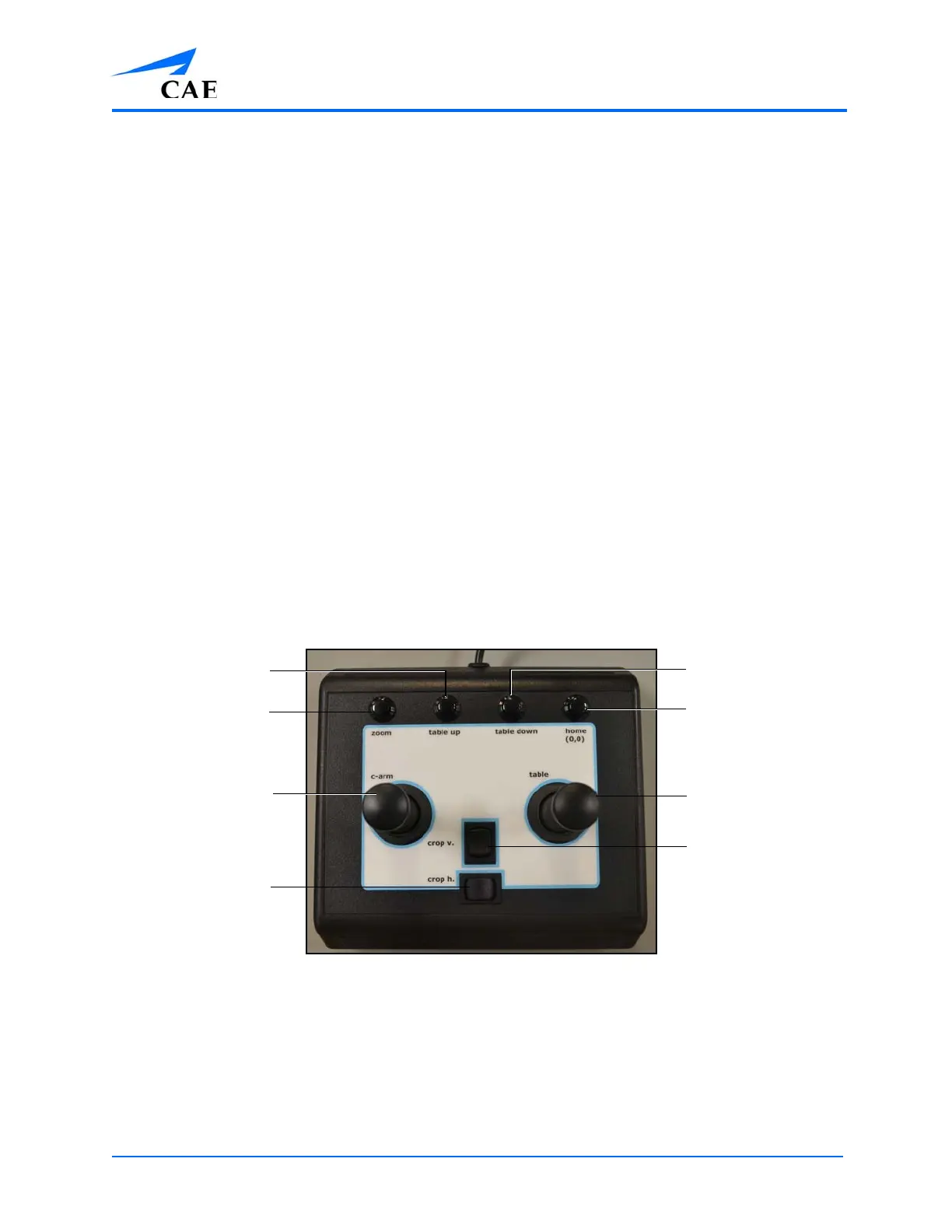

Control Box
The control box connects to the computer and controls the C-Arm movements, table movements,
zoom and x-ray shutters.
The Control Box
Keyboard and Mouse
The keyboard and mouse connect to the computer and allow users to navigate through the software
and enter information as necessary.
The Zoom
button
The C-Arm
joystick
The Crop
Horizontal
toggle
The Home
button
The Table
joystick
The Crop
Vertical
toggle
The Table Up
button
The Table
Down button
