Using the Simulator
47
PN: 905K400652
Using the Embolic Protection Devices
The embolic protection devices are used during coronary and carotid intervention procedures. The
specific tools are the interceptor, guardwire and export catheter.
The Simulation Screen - Left Monitor
To use an embolic protection tool:
1. Ensure the tool handle is connected to the Instrumented Accessories ports on the back
of the simulator
2. Click the Embolic Protection Tools link inside the tools selection panel
3. Select the desired Embolic Protection Tool
4. Click OK
The selected tool name appears in the below the Embolic Protection Tools link in the
tools selection panel.
Note: If the Export catheter is selected, the green indicator button next to the Aspirate
function will illuminate. When the button turns green, users can select the Aspirate link
to aspirate the patient during the simulator. To cease aspiration, click the Aspirate link
again.

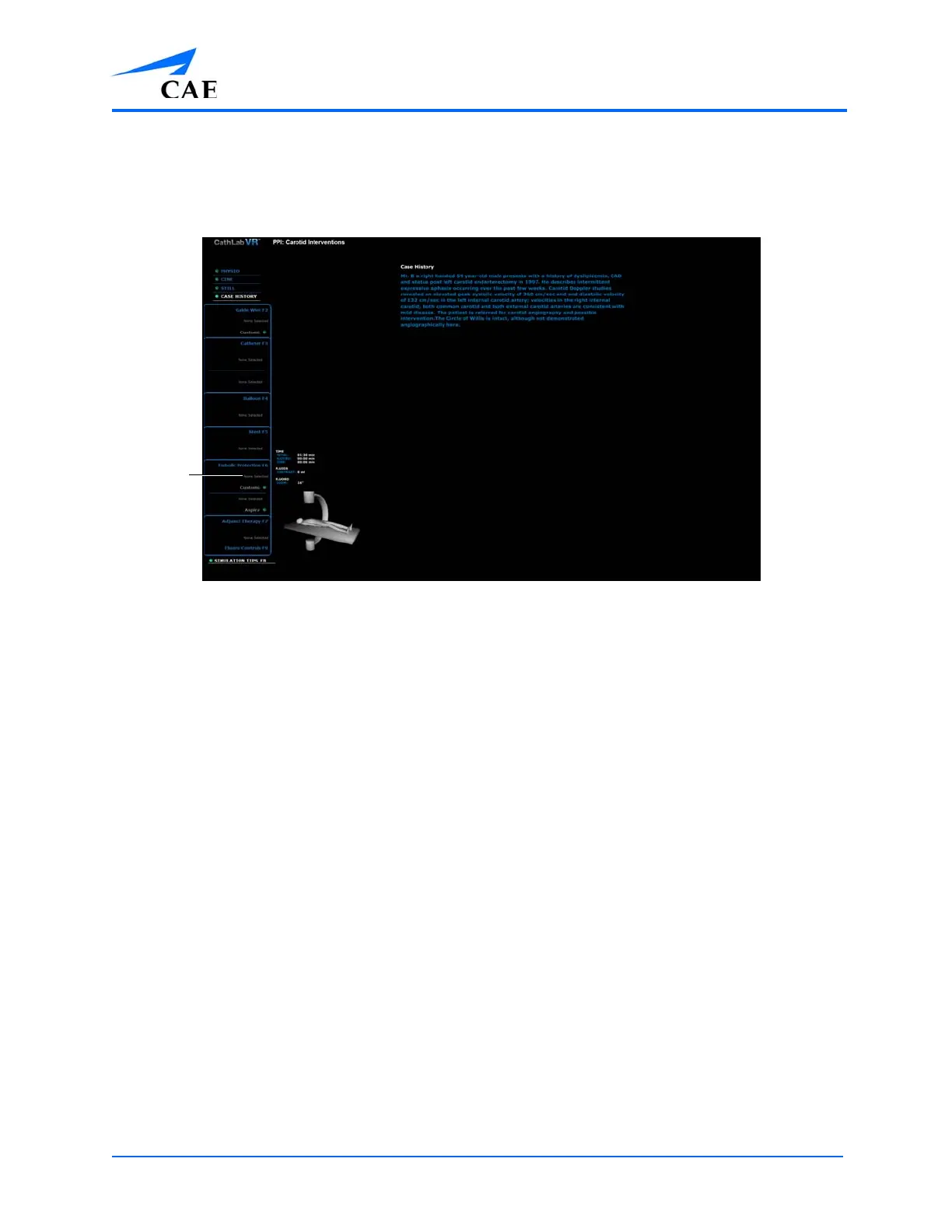

The
Embolic
Protectio
n tool
selection
panel
