3.9.2 Drip tray installation

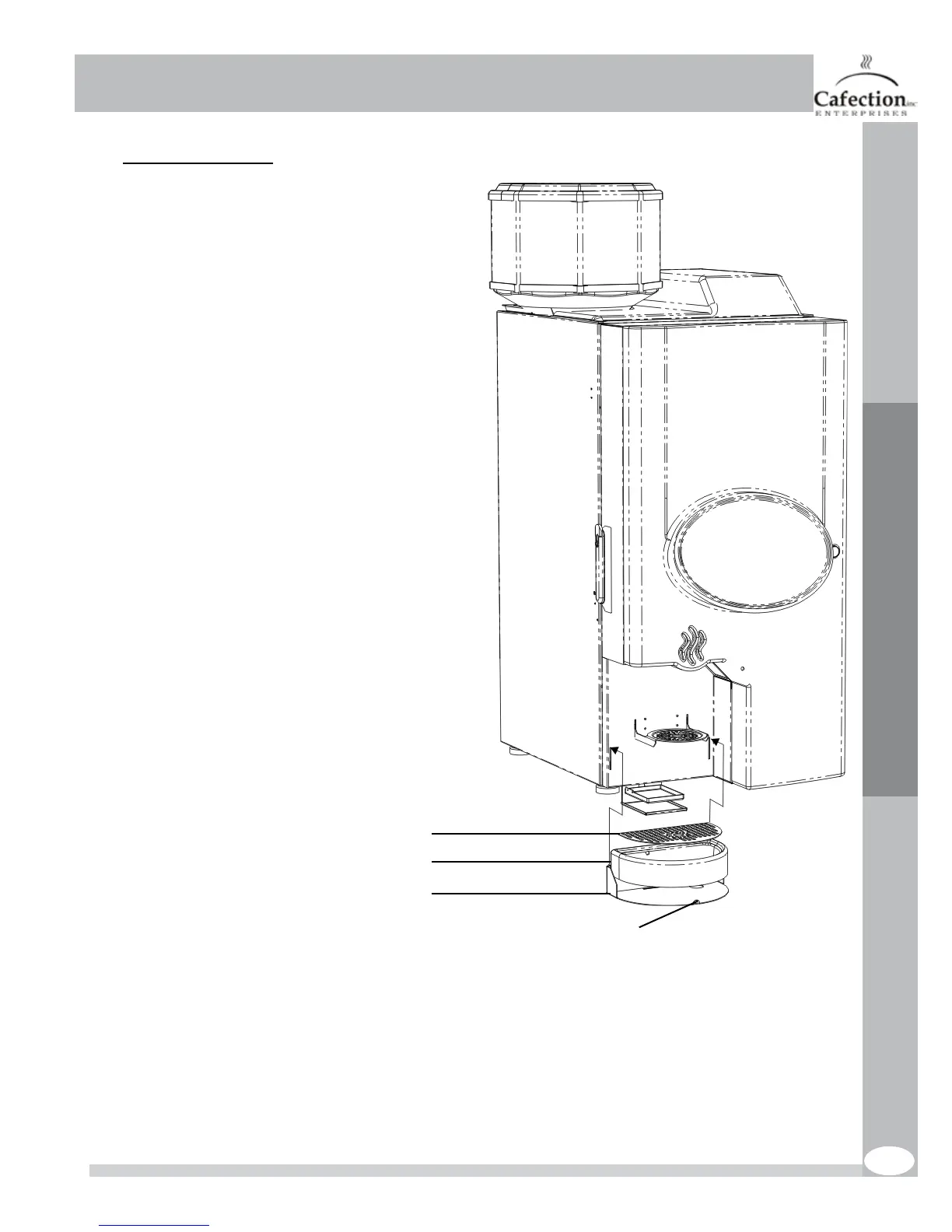

1. Insert the drip tray support (05DOR02) in the
door.
2. Set the drip tray (05CAB17) on the support
(05DOR02) inside the restraint.
3. Install the metal grill (05CAB10) on the drip
tray (05CAB17).
Initial Setup
05CAB10
05CAB17
05DOR02
Restraint
