Initial Setup

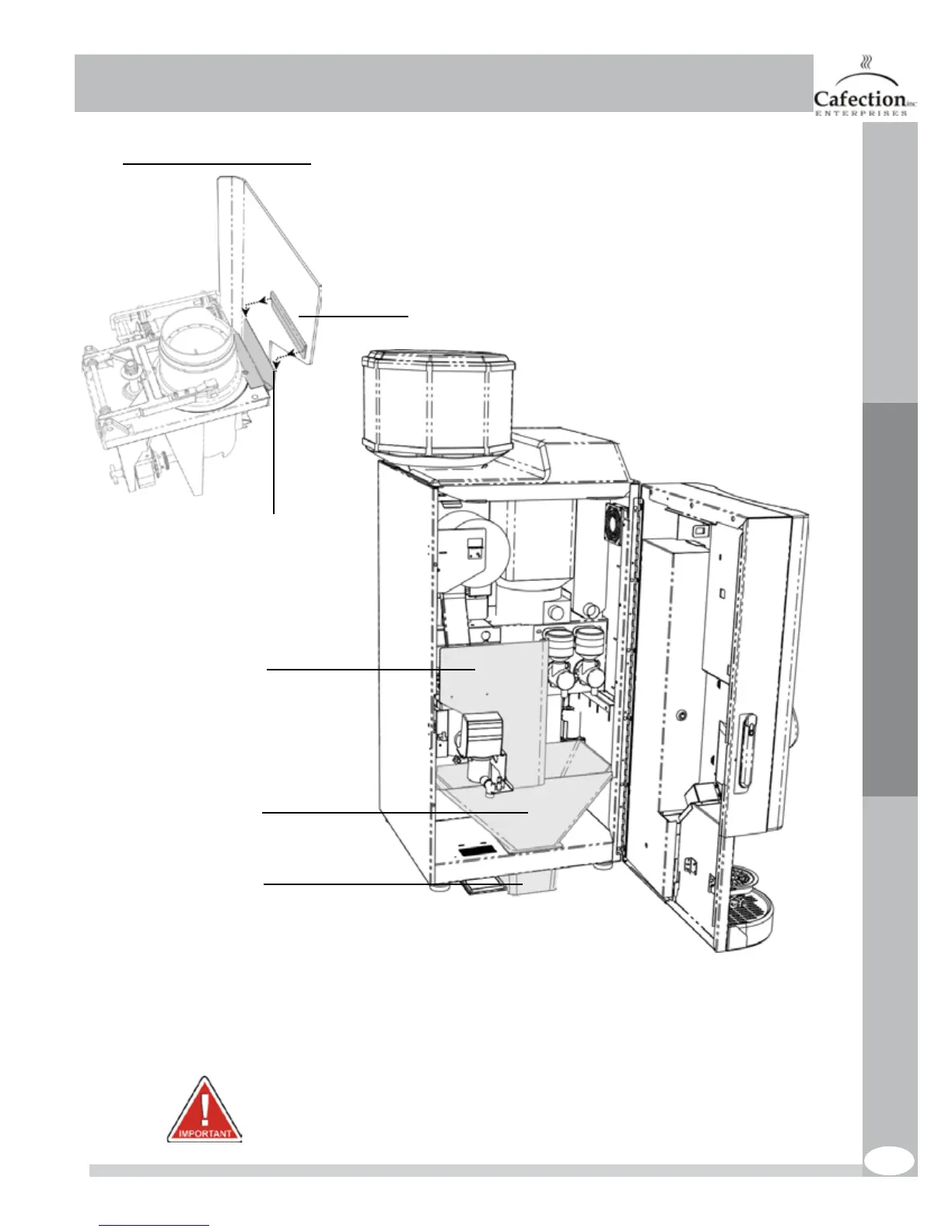

3.11 Chute system installation
1. Open the door of the equipment;
2. Insert the chute base inside the chute hole of the cabinet;
3. Insert the large waste chute into the chute base;
4. Install the front panel by aligning the metal bracket behind the front panel with the metal
 bracketxedonthebrewerassembly.
Internal waste bin maximum coffee capacity: 100 cups
Metal bracket
of the front panel
Front panel
Waste chute
Chute base
Metal bracket
of the brewer
assembly
