Cleaning & Sanitizing
5.7.4 Coffee brewer
Rinsing the brew chamber:
Frequency: Weekly or every 200 cycles
1. Place a large cup or other suitable container below the dispensing
nozzle to catch the HOT rinse water;
2. Toggle the ingredient switch to Off (SW5 see main board);
3. Orderseveralcoffeesforthehotwatertoowthroughthesystem;
4. Toggle the ingredient switch back ON;
5. Remove the hose and remove the brew chamber’s funnel to
dislodge coffee residue trapped underneath it and rinse it out;
6. Replace it and align the opening with the brown water hose so
that it is against the wall to form a circular water motion around
the funnel;
7. Orderalargecoffeetoconrmthatallpartshavebeenreplaced
correctly.
Brewer funnel
Frequency: As needed or weekly
If there are coffee grounds accumulated, remove the assembly for manual cleaning under hot
water:
1. Remove the brown water hose;
2. Lift off the funnel and pull out of the brew chamber;
3. Rinse thoroughly under hot water;
4. Air dry completely;
5. Reinstall all parts in the reverse order.
6. Orderalargecoffeetoconrmthatallpartshavebeenreplaced
correctly.
Brewer assembly cleaning
Frequency: Monthly or every 1,000 cycles
In order to maintain optimal performance of the brewer assembly,
we recommend that it be removed from the unit and cleaned /
rinsed with hot water.
1. Rinse thoroughly under hot water to remove visible soil;
2. Lift off the funnel and pull out of the brew chamber;
3. Rinse thoroughly under hot water;
4. Air dry completely;
5. Reinstall all parts in the reverse order.
6. Orderalargecoffeetoconrmthatallpartshavebeenreplaced
correctly.

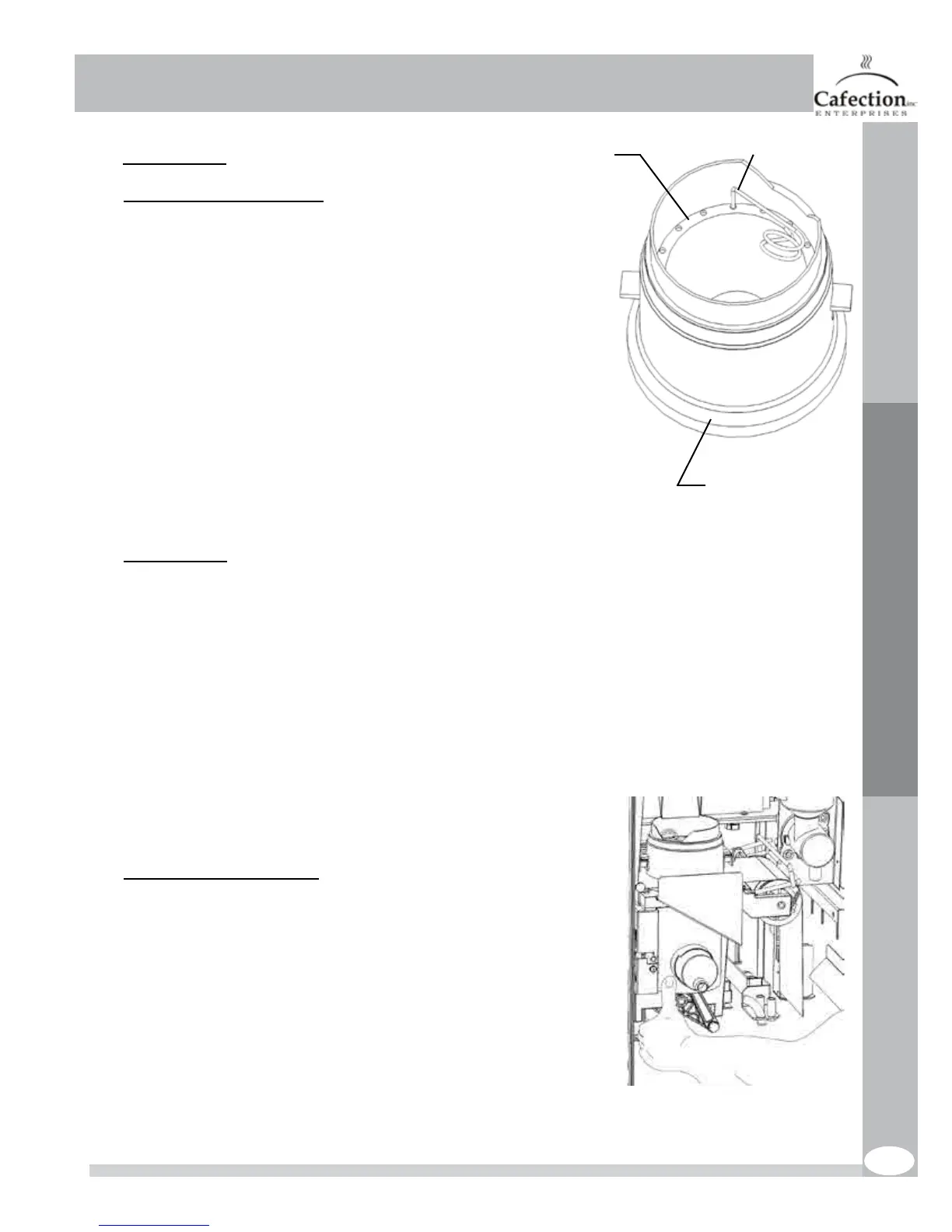

Brewer
Funnel
Hose Support
Brew chamber
