Cleaning & Sanitizing
5.7.6 Stainless coffee chute
Frequency: Monthly or every 1,000 cycles
1. Open the door of the machine;
2. Removethelterpaper;
3. Remove the grinder protector;
4. Unplug the 2 connectors from the solenoid;
5. Remove the stainless chute by unscrewing the 2 screws;
6. Clean the stainless chute by rinsing with hot water;
7. Make sure it is dry before reinstalling.
Repeat the steps in reverse order after cleaningfor the reinstallation.

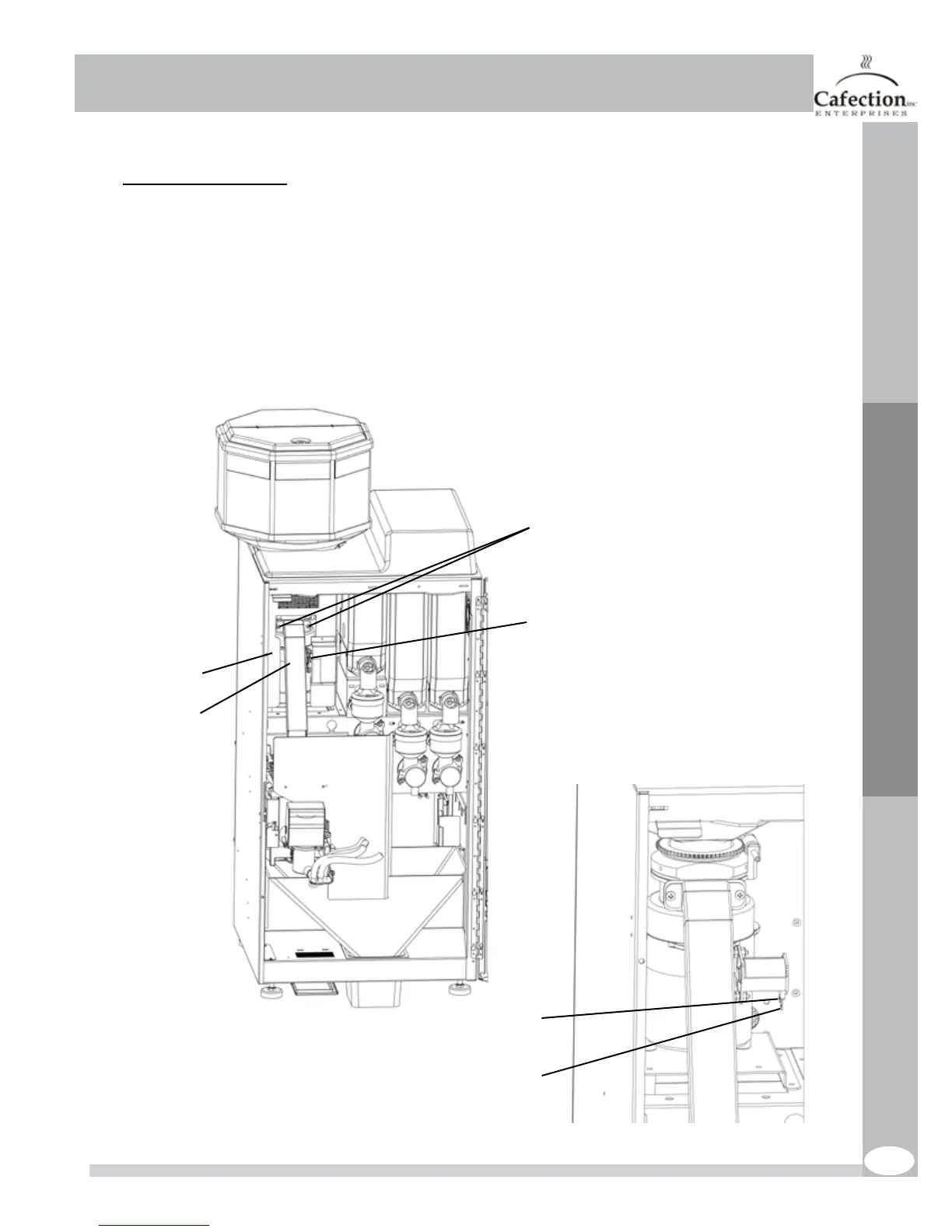

*Image may differ depending on the model of the machine, but the grinder is the same.
Stainless
coffee chute
screw
Grinder
protector
Stainless coffee
chute
Solenoid
Red
connector
(in the front)
Black
connector
(at the back)
