Preventive Maintenance
6.3 Water outlet valves
Quarterly or every 10,000 cycles
To avoid any problems related to mineral deposits over time, we recommend having the 3
valves swapped, and rebuilt in your shop with the kits included in the spare parts briefcase.
Refer to the manufacturer’s instructions included with the valve kits.
Leaking valve
a) Identify the leaking valve, change it and rebuild it
b) If the leak comes from under the body of the valve or from the tank exit, try simply changing
the conical mounting seal.
c) If the coffee valve leaks via the tubing, water will accumulate in the brew chamber. If it drips
allnight,therstcoffeeofthemorningmaycausethechambertooodsinceitcontainedtoo
much water and may be lukewarm.
Removing and installing the valves
1. Turn off the machine;
2. Unplugthelid(g.1.1)andthevalves(g.1.2);
3. Drain the water from the water tank completely (see section 7.1);
4. Remove the tubes;
5. Unscrew the tank guard to remove the tank;
6. Tilt the tank towards you to have access to the valves;
7. Remove the valves;
8. Reinstall by repeating in the reverse order
Ifyouchoosetoinstallawaterltrationsystem,itisrecommendedthatthe
lterbecheckedonamonthlybasis.
Caution water is hot!

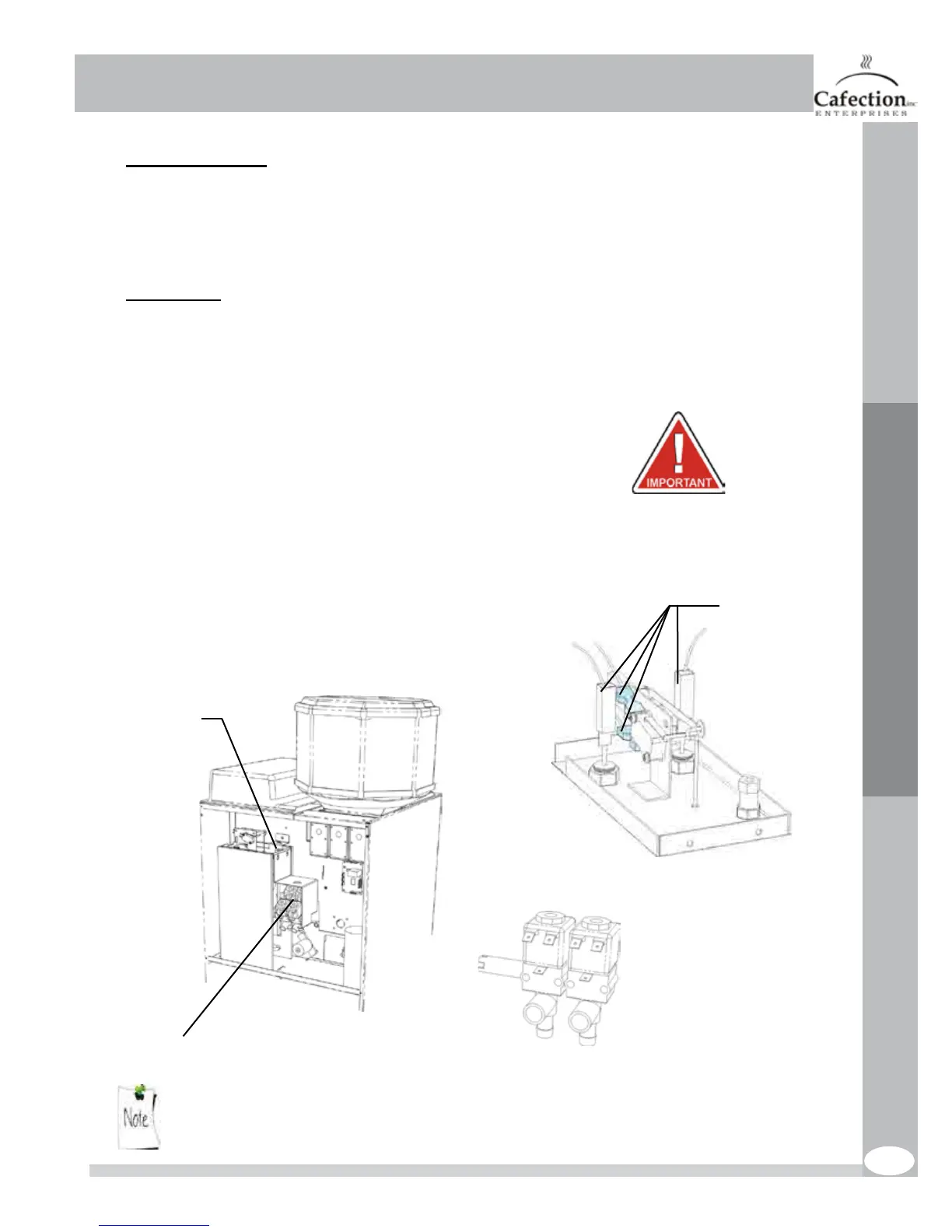

Tank guard
Valves
Unplug
these connectors
Tank Lid Fig. 1.1
Double valve
Valves Fig. 1.2
