Calix ODC-10 Installation Guide
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.

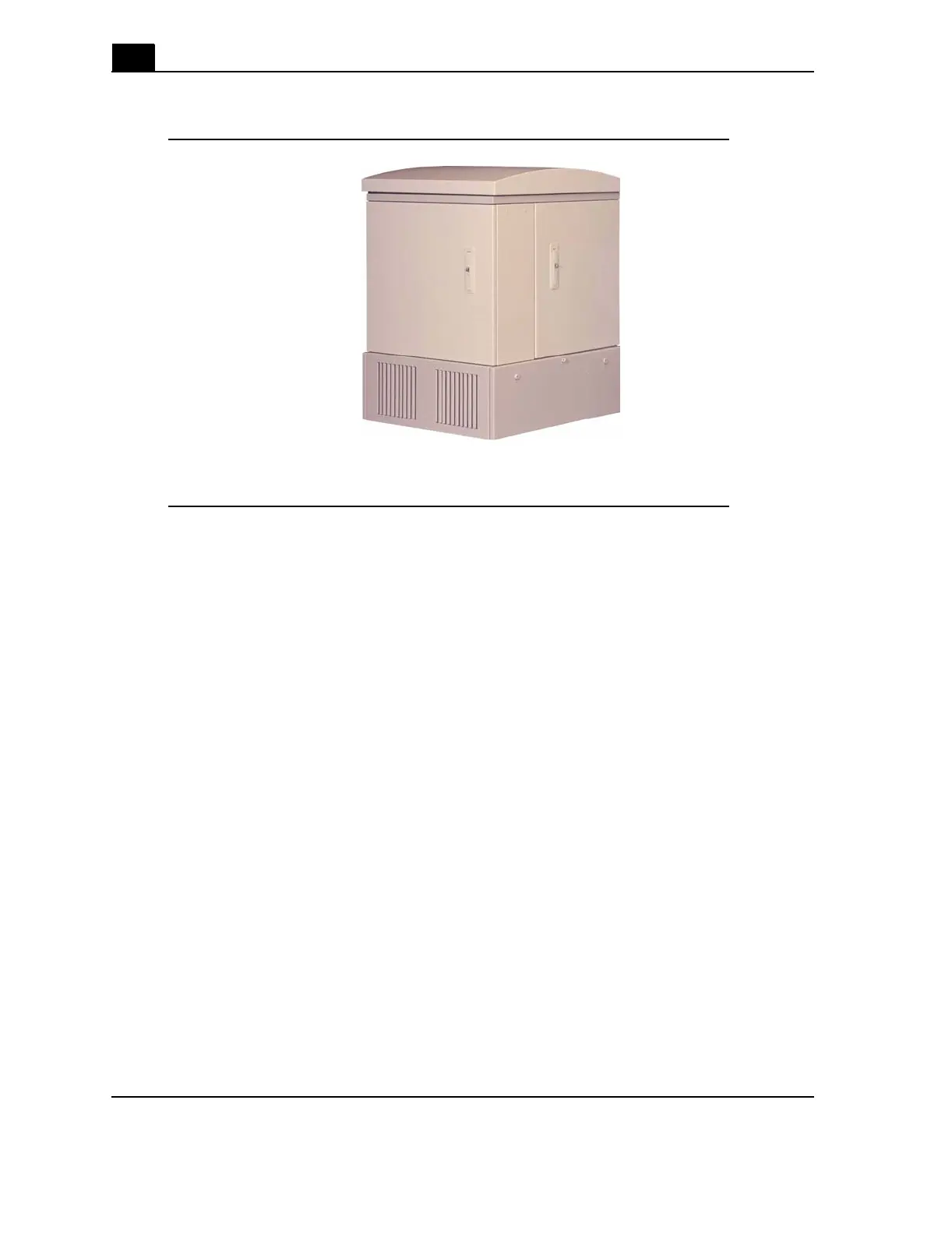

View of the ODC-10 cabinet
Features of the ODC-10 cabinet
Following are some features of the Calix C7 ODC-10 optical access cabinet.
• integrated air-to-air tubular cooling system with DC blowers
• wired capacity of up to 240 subscribers (copper and/or fiber)
• environmentally rated -40C to +52C ambient temperature
• standard 5-pin copper protection panels - up to 240 positions
• 220-240 VAC single phase power feed
• 30 Amp service with UL listed service disconnect
• redundant AC feeds to rectifier, redundant DC feeds to Calix C7 shelf
• low voltage DC disconnect
• high power AC surge protection
• extensive alarm functionality
• UL-67 and GR-487 compliance
