Battery access
The battery compartment has one sliding battery tray. The tray holds one battery string.
Each string has four batteries.
You can access the battery compartment from the front or rear of the cabinet. The front
allows access to the batteries in their sliding tray. The rear allows cable access and battery
heater installation access.

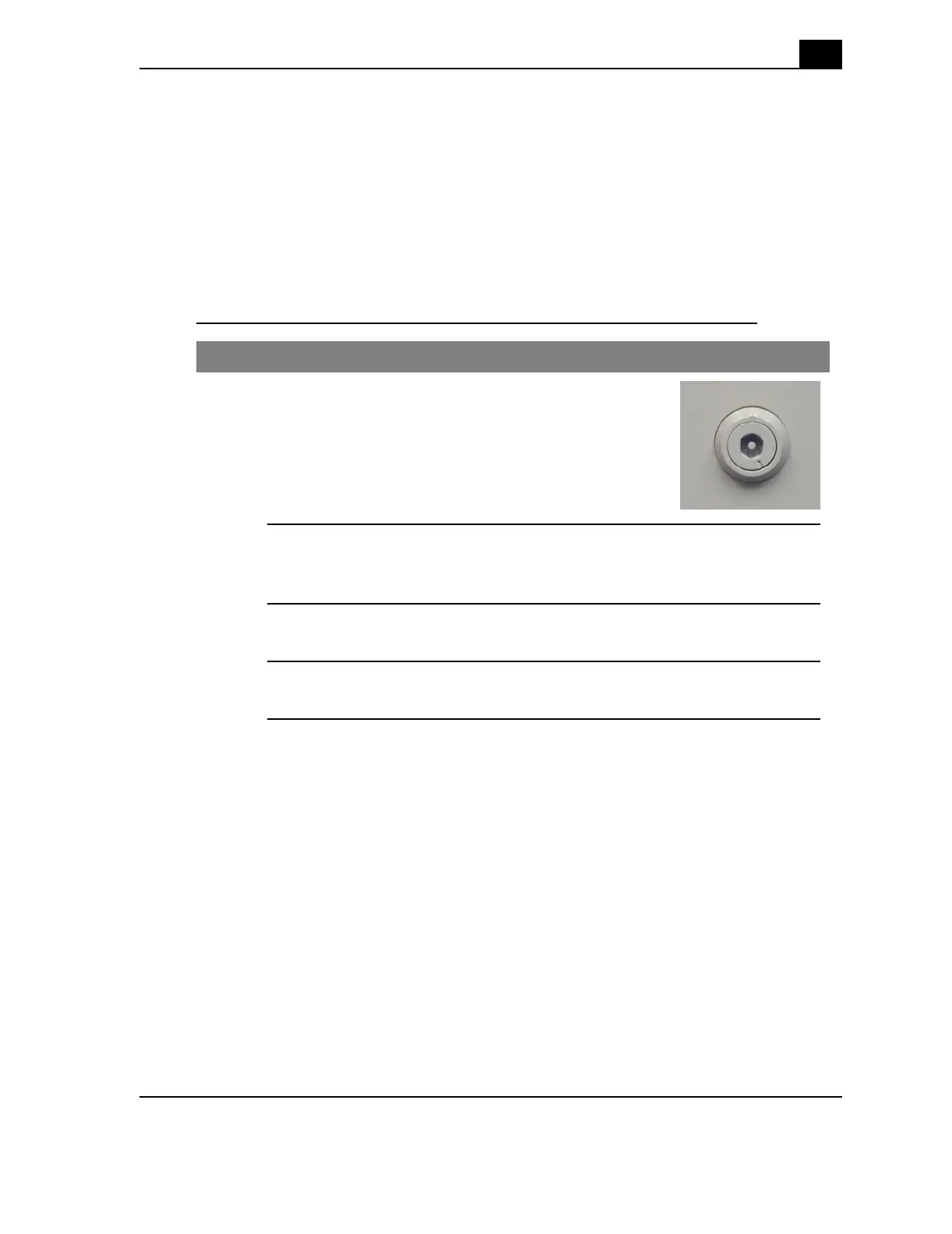

Procedure to remove a battery compartment panel
Step Action
1.
Insert the key into a latch and turn it counterclockwise
until it stops to release the panel latch.
Repeat for all other latches on the panel.
2.
Lift the panel slightly to free the tabs at the bottom of the panel from the
cabinet, then lay the panel down in front of the compartment.
3.
On the panel, remove the ground strap from the panel.
4.
Set the battery compartment panel out of your way.
