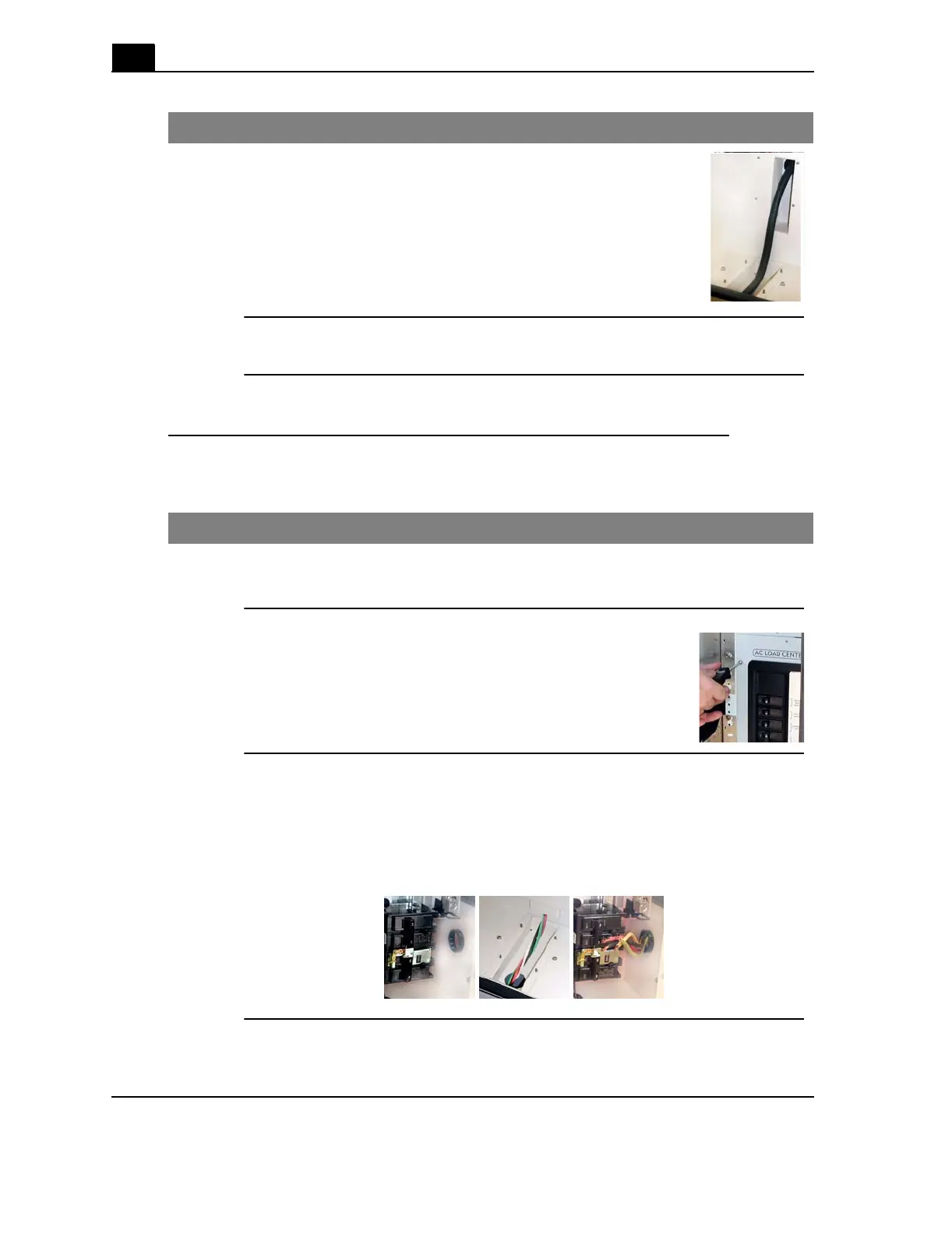

Procedure pull AC power cables to the AC Load Center using fish tape
Use this procedure if you have flexible power cables or if you have already installed
subscriber cable.
5.
Push the AC power cable through the AC access feed in the
splice compartment wall to reach the AC Load Center.
6.
Reinstall the wall plate and pegboard.
Step Action
Step Action
1.
At the AC Load Center in the front of the cabinet, switch all breakers to the
off position.
2.
In the front equipment compartment, remove the metal AC
Load Center front panel.
Note: Do not remove the plastic cover.
3.
At the AC Load Center:
a. drop a fish tape through the wall AC access feed to reach the AC entry
tray in the splice compartment
b. attach the fish tape to the AC cables in the AC entry tray
c. pull the cables through to the AC Load Center.
