Replace the generator connector
Emergency generator connection
In the event of external AC power failure, an optional generator connection is available.
The generator connector is located on the front exterior of the cabinet. A 30 Amp Hubbell
twist lock connector with a weatherproof seal is available to order. A circuit breaker
services the generator connector.
Description of emergency generator connector types
The 30 Amp generator connector is a Twist-Lock, NEMA L14-30R, 3 pole 4-wire
grounding, 250 VAC. A weatherproof Seal-Tite Seal Boot is optional but strongly
recommended.

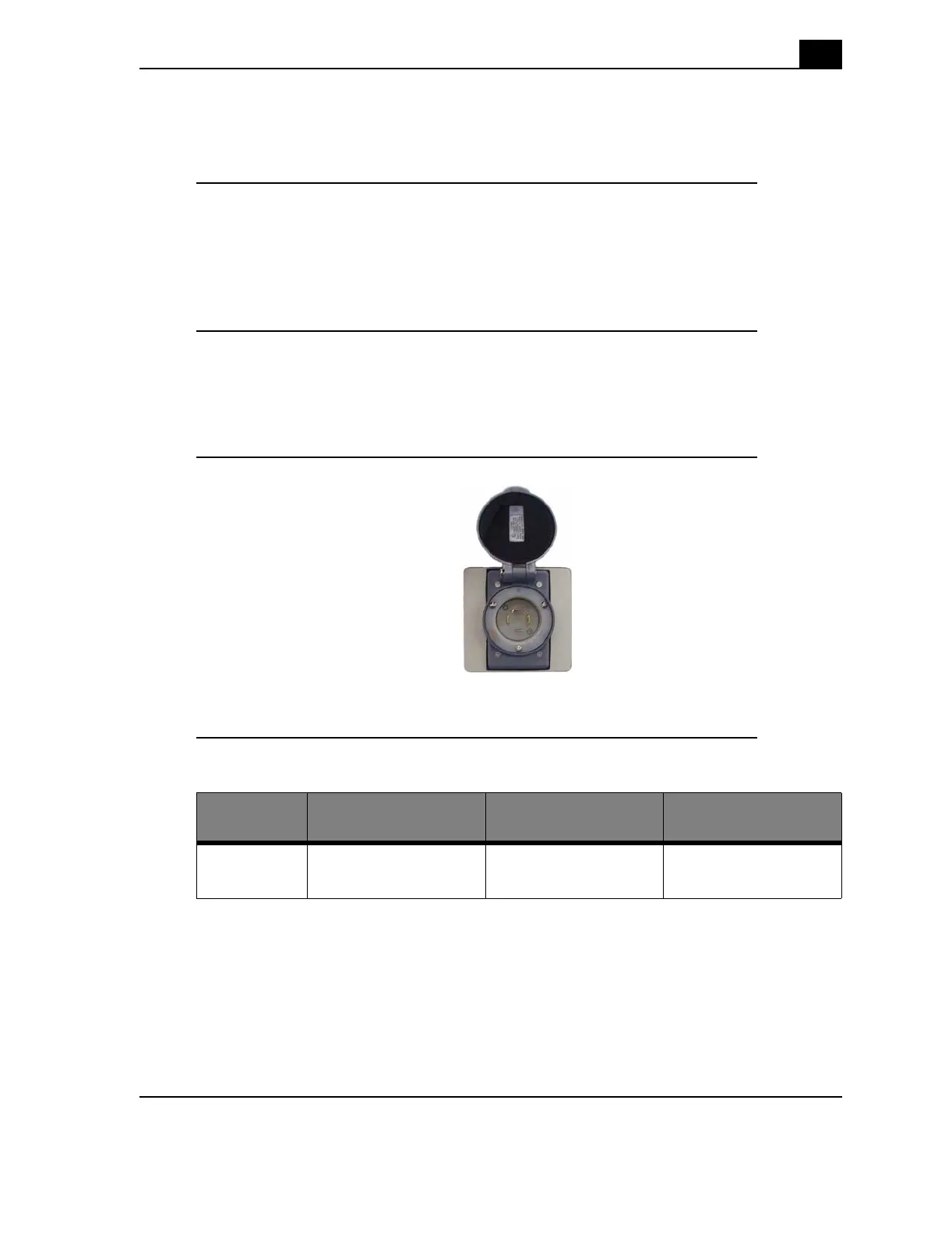

View of the 30 Amp generator connector
Generator connector part numbers
The Hubbell part numbers for the generator connector and its mate are:
Generator
connector
Inlet Weatherproofing Connector
30 Amp HBL2715 (NEMA
L14-30R)
Seal boot HBL6035 HBL2713 (NEMA
L14-30P)
