Calix ODC-10 - Seal the Cabinet

Calix ODC-10 Installation Guide
23
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.

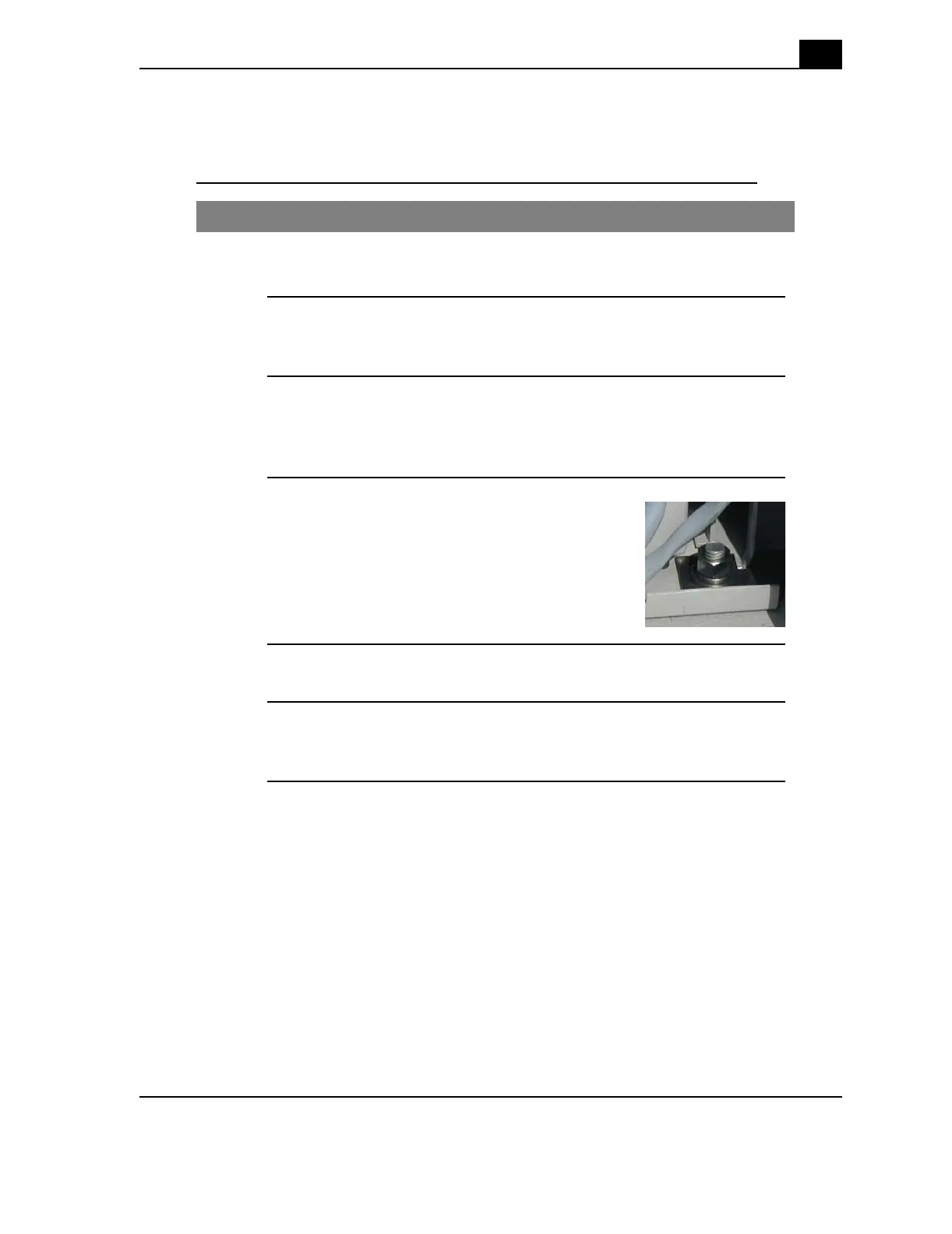

Lower and bolt
Procedure to lower and bolt the cabinet
Step Action
1.
While suspended, align the holes in the cabinet base with the four bolts
protruding from the pad.
2.
Open the splice compartment door and align the AC conduit with the
splice compartment AC entry hole.
3.
Lower the cabinet onto the pad, ensuring the bolts in the pad fit into
the holes in the base of the cabinet and the AC conduit fits through its
corresponding hole in the splice compartment.
4.
Install one square washer, lock washer, and nut
from the installation kit on each of the four bolts
(two in front, two in rear).
5.
Securely tighten the nuts to secure the cabinet to the pad.
6.
Close the rear battery compartment panel. See the battery access
procedure.
