Calix ODC-10 Installation Guide
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.

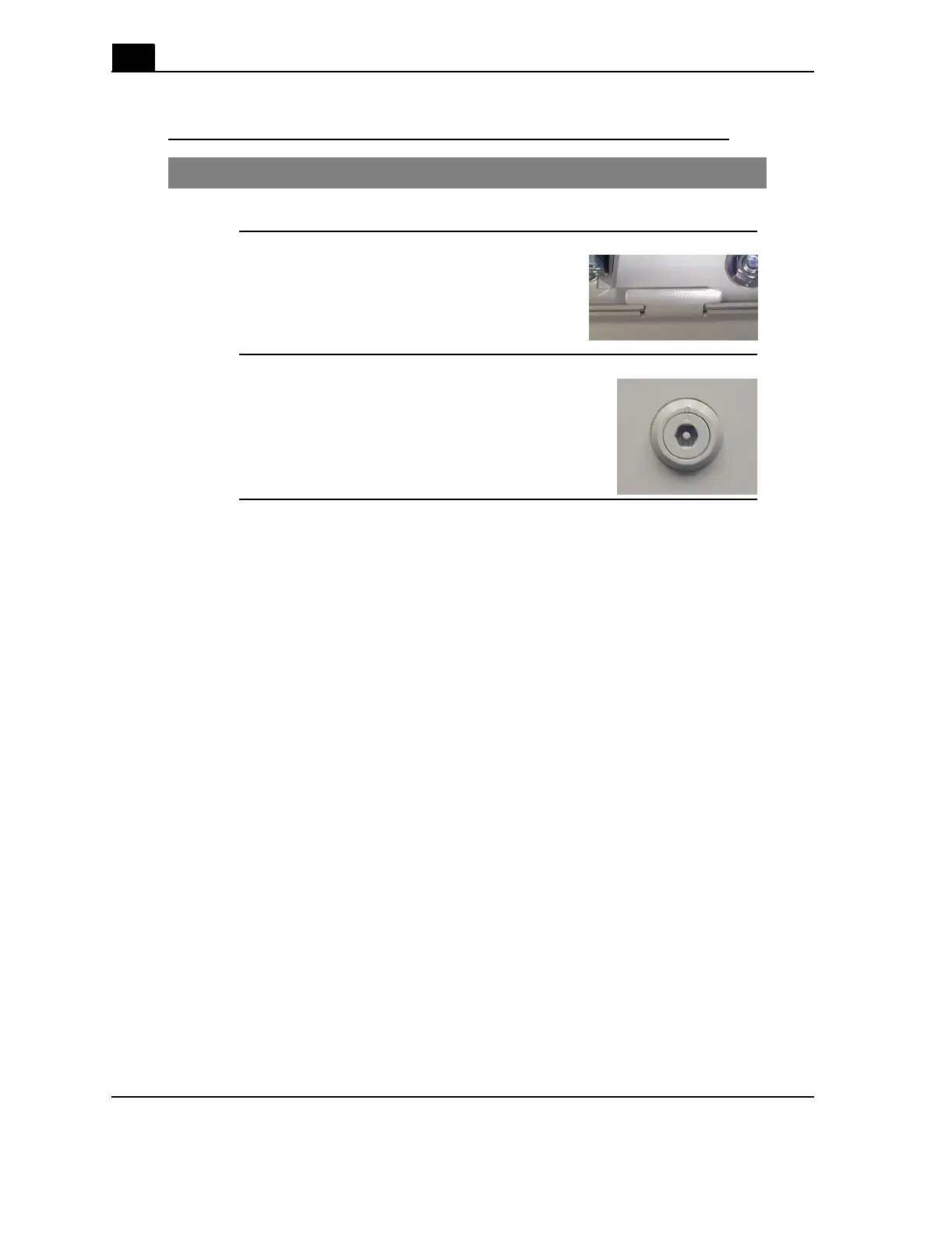

Procedure to replace a battery compartment panel
Step Action
1.
Reattach the grounding strap to the panel.
2.
Align the tabs at the bottom of the panel with
the cutouts in the bottom of the battery
compartment and tilt the panel into place.
3.
Insert the key into a latch and turn it clockwise
until the inner keyhole notch aligns with the outer
keyhole notch.
Repeat for all latches on the panel.
