Calix ODC-10 Installation Guide
63
Proprietary Information: Not for use or disclosure except by written agreement with Calix.
© 2001-2003 Calix. All Rights Reserved.
Install optical plug-in cards

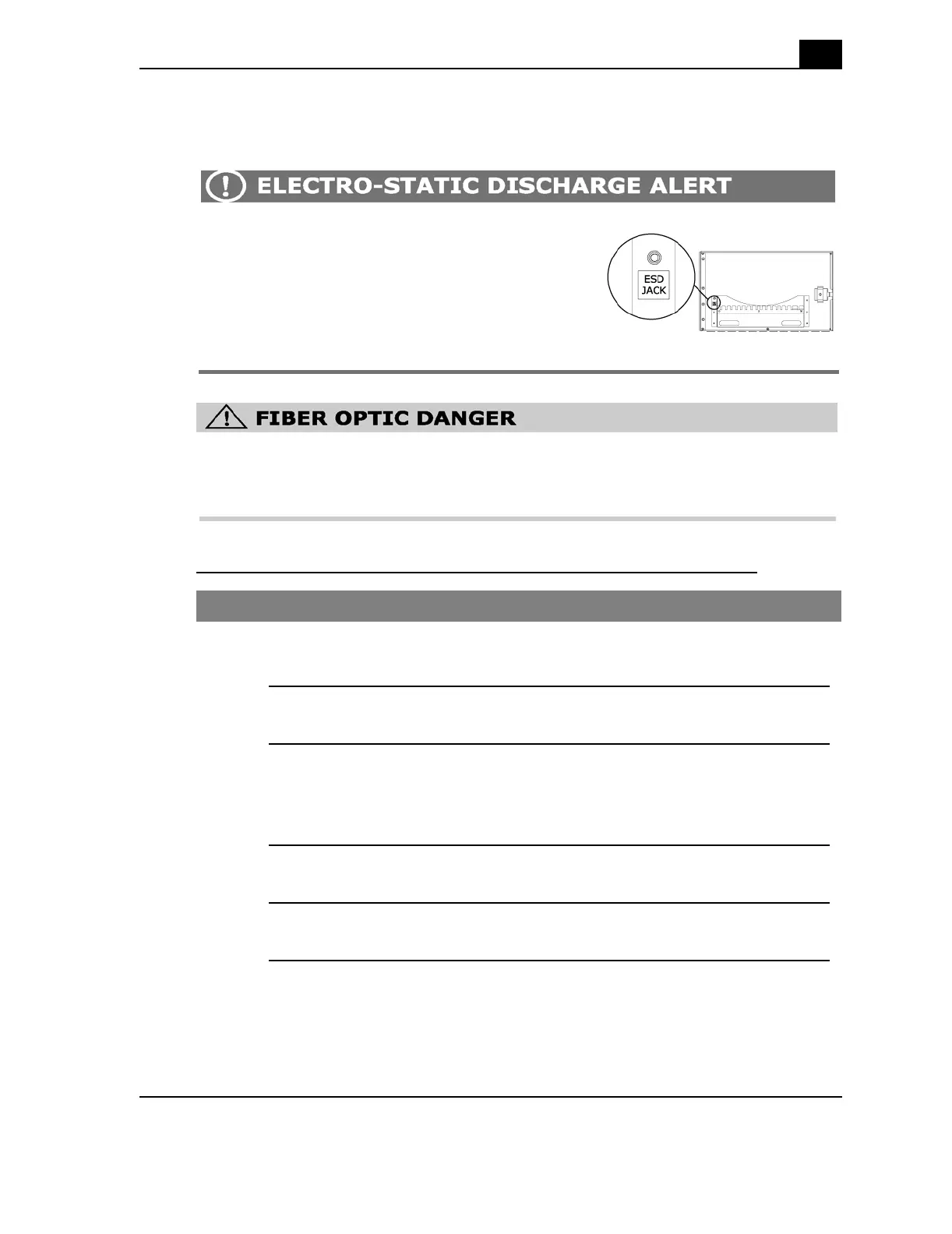

ELECTRO-STATIC DISCHARGE ALERT!
When installing or removing the plug-in cards, always
wear the electro-static discharge (ESD) wristband
provided. Plug the wristband cable into the ESD jack
located on the inside of the Calix C7 door on the lower
left corner.
FIBER OPTIC DANGER! Never look into the end of a fiber optic cable! Light
output from a fiber optic cable is invisible to the human eye. However, it can destroy the
retina of the eye.
Procedure to install an optical plug-in card
Step Action
1.
If you have not already done so, remove the optical card from its packaging
and remove the plug cover at the rear of the card.
2.
Pull the card ejector down to the unlocked position.
3.
Slide the card along the guide rails into any universal slot. Important: To
avoid causing damage to the card or the shelf, align the card correctly
with the guide rails prior to inserting it.
4.
Push the card ejector up into the locked position.
5.
Remove the fiber protector cover from the top front of the card.
