For adapting the Humidity Control device, four screws (1) are
provided to fix it on the back of the ADC2; they are used as
fixation of the ventilation valve module.
The ventilation valve module is mounted on a holding plate
that has to be placed in the position over the four screws and
tightened. Next, the two hoses already fixed on the ventilation
valve module must be connected to the sockets above (fig.13).
After this the top cover can be attached and fixed with one
screw at each side of the module (see fig. 15.1).
Connect the cable to the appropriate connector (fig. 3).
When inserting the components into the gas wash bottle, make
sure the funnel is sitting on the undissolved salt layer! If properly
fitted, the lid (1) touches the upper edge of the gas wash bottle
(see fig. 14).

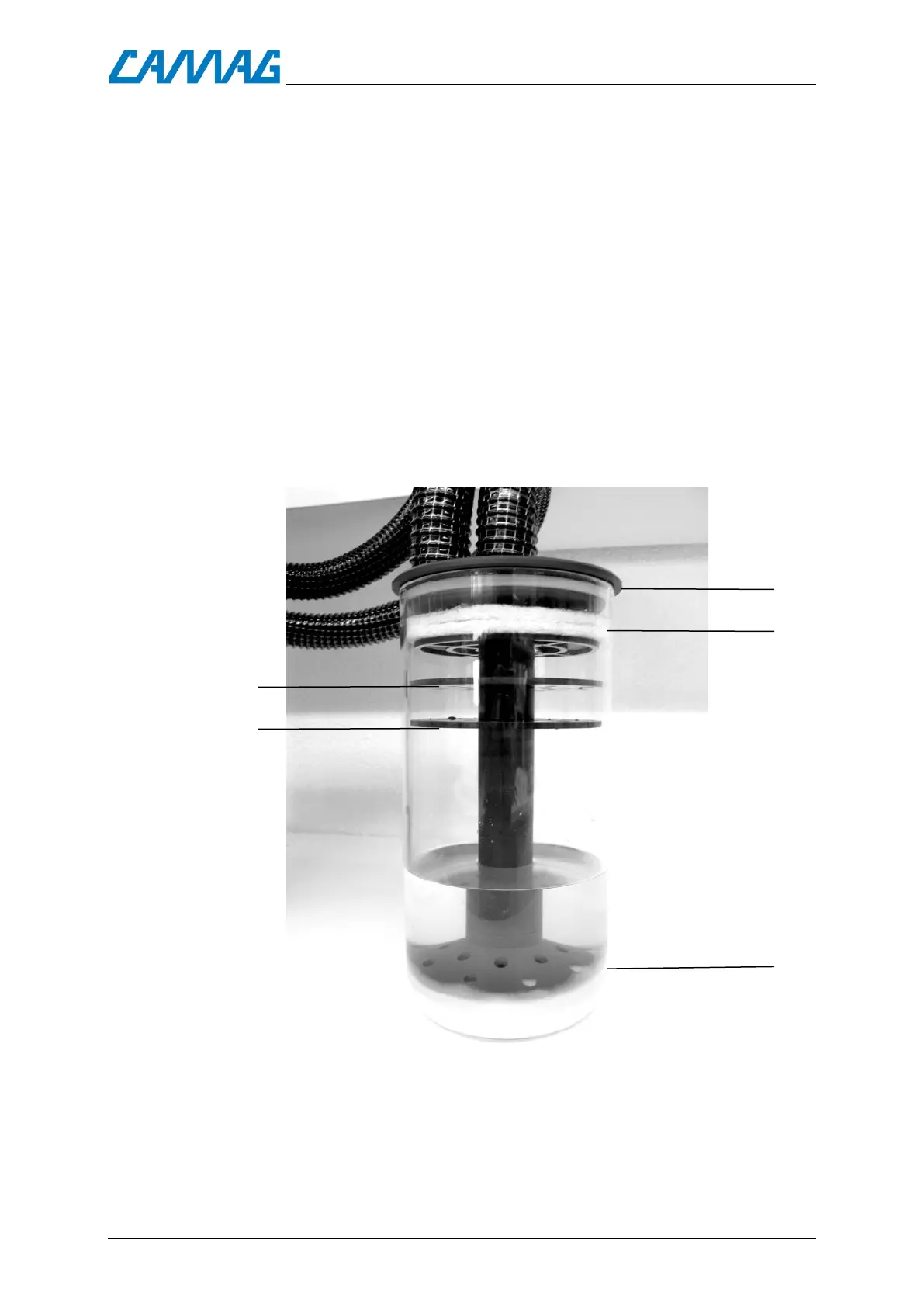

Fig.14: 1 = top cap, 2 = filters, 3 = splash guard plates, 4 = distribution funnel with
undissolved salt underneath
The connection of the gas wash bottle to the ventilation valve
module is made with two pre-assembled hoses.
