Instruction Manual, November 2016 Page 36
Connect the center hose (black socket) to the “black” horizon-
tal socket of ventilation valve and the outside hose (grey sock-
et) to the “grey” socket of the ventilation valve!
WARNING: Make sure to connect these hoses correctly, because
you would fill the ADC2 with salt solution in case of a wrong con-
nection! (See fig. 14)

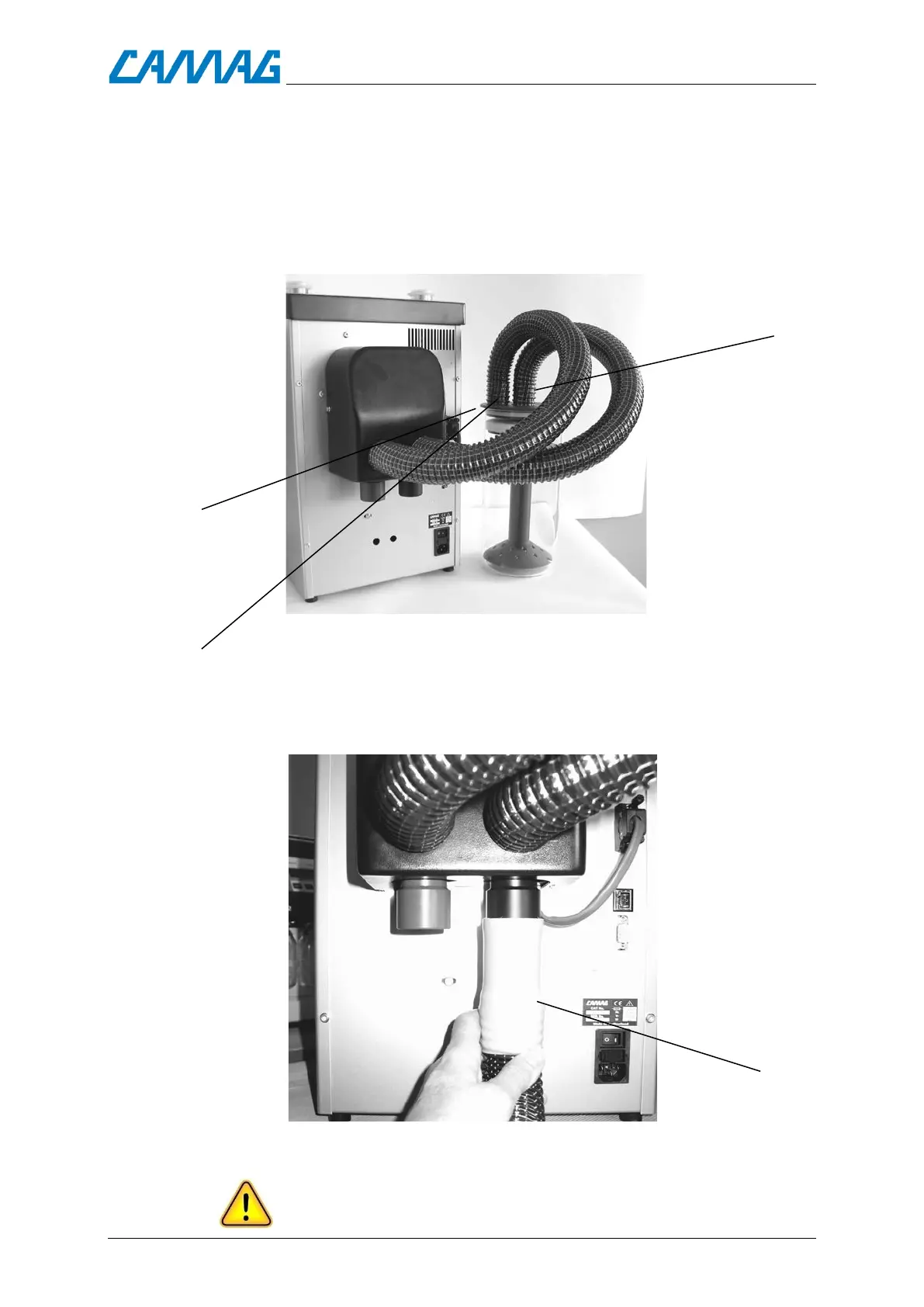

Fig. 15.1
The two sockets directed down on the ventilation valve mount
are for exhaust and air supply. The exhaust tube has to be
slipped onto the “black” socket, fig. 15.2.
Fig. 15.2: Humidity module: 1 = center hose, 2 = top cover,
3 = outside hose, 4 = exhaust hose
Warning! Never insert your fingers into the sockets!
