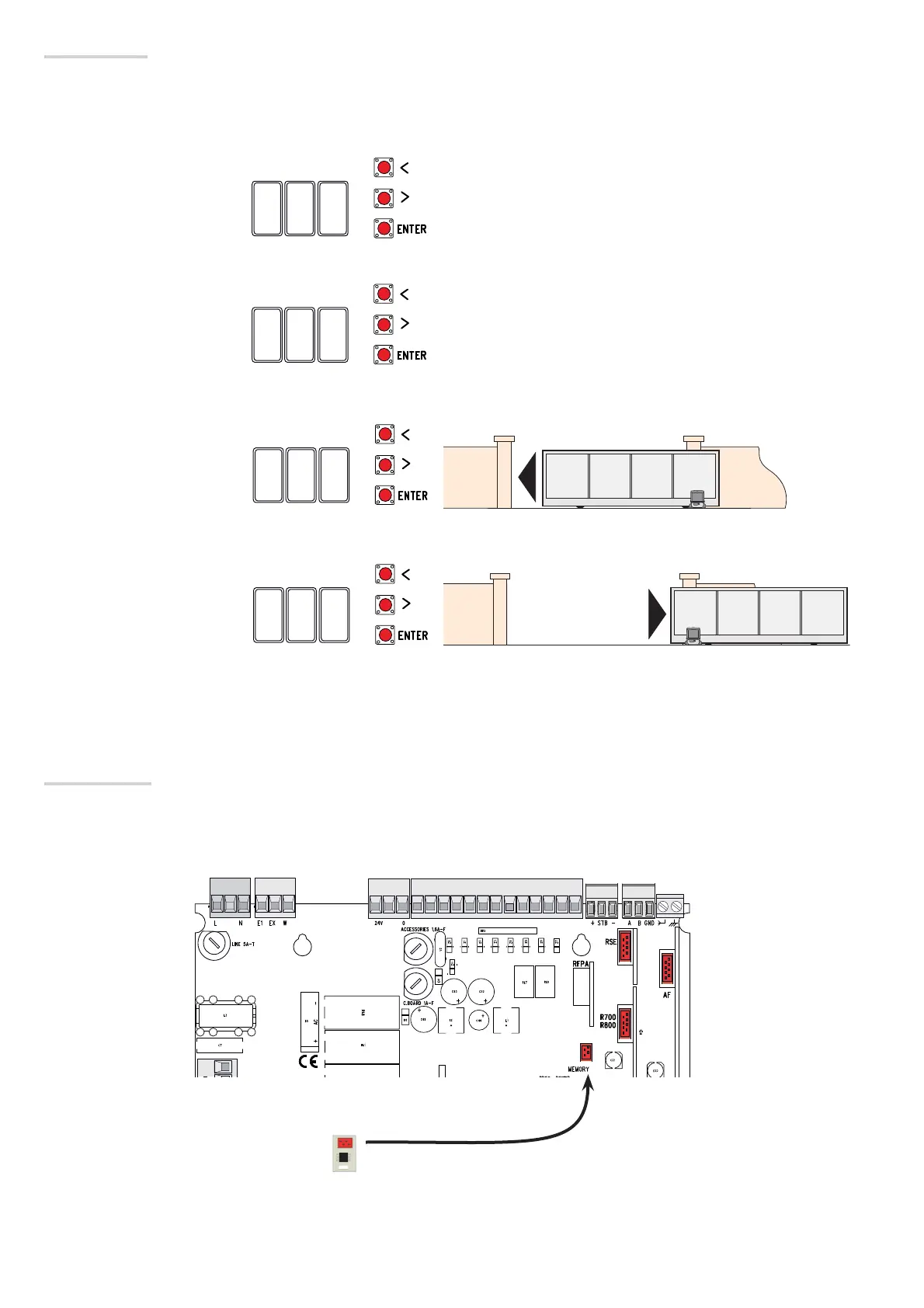

Select A 3.
Press ENTER to confirm.
Select 1 and press ENTER to
confirm the travel calibration
operation.
The gate will perform a closing
maneuver until it reaches a final
stop...
...then the gate will perform
an opening maneuver until it
reaches a final stop.
Travel calibration
⚠
Before calibrating the gate travel, position the gate half-way, check that the maneuvering area is clear of any obstruction and check
that there are mechanical opening and closing stops.
⚠
The mechanical end-stops are obligatory.
Important! While calibrating, all of the safety devices will be disabled excluding the TOTAL STOP one.
Memory Roll Card
To memorize user data and configure the system, to then reuse them with another control board even on another system.
After memorizing the data, it is best to remove the memory roll.
