Setting up the gearmotor

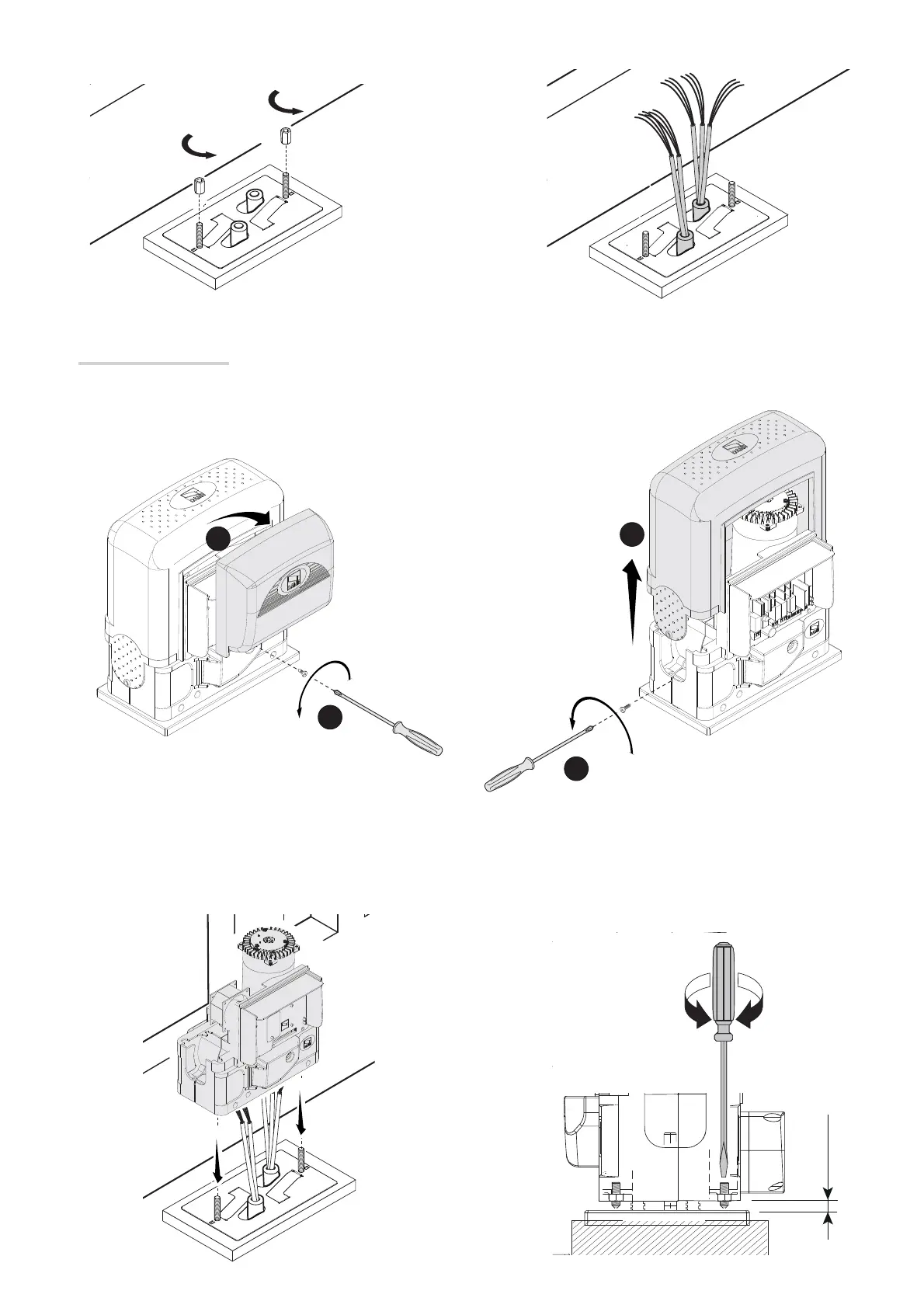

Remove the front cover and gearmotor cover.
Remove the nut and washer from the bolts
Fit the electric cables into the tubes so that they come out about 600 mm.
Place the gearmotor above the anchoring plate.
Careful! The electric cables must pass under the gearmotor box.
Lift the gearmotor by 5 to 10 mm from the plate by adjusting the threaded steel feet to allow any subsequent adjustments between pinion and rack.
