9 F 4
I
2 F 5
I
A
B
UTP CAT 5
1 2 3 4
1 2 3 4
1
2
3
4
5
1
1
2
3
4
p.
21 - Manual code:
119BJ04EN v.
1 02/2015
© CAME Cancelli Automatici S.p.A. - The data and information in this manual may be changed at any time and without notice..

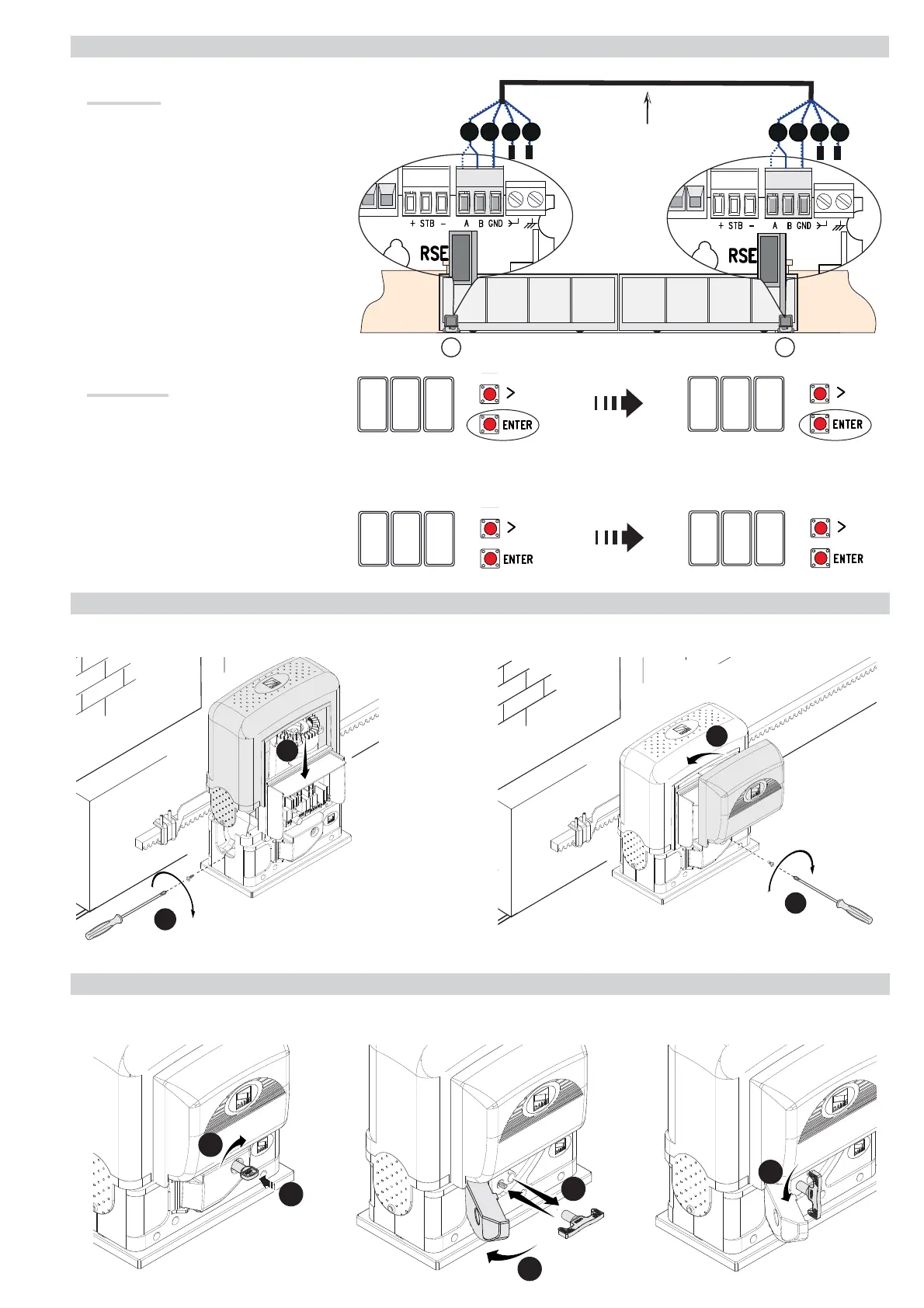

PAIRED CONNECTION WITH A SINGLE CONTROL
Connections
Only perform on the MASTER board ter-
minals Ⓐ any connections of the control,
warning and safety devices.
Connect the two boards using a UTP CAT
5 cable on terminals A-B-GND and fit the
RSE board into both boards.
Programming
Set the functions on the MASTER board
as follows:
- from function F49, select 1=Paired and
press ENTER to confirm.
- from function F52, select 1 and press
ENTER to activate the data passage from
the MASTER board Ⓐto the SLAVE board
Ⓑ.
FINAL OPERATIONS
Once you have finished making all the electrical connections and powered up the operator, fit the cover while making sure not to damage any cables.
Fasten using screws.
RELEASING THE GEARMOTOR
⚠
This procedure must be done with the main power cut o .
⚠
Manually releasing the operator may result in uncontrolled movement of the gate, if this has any mechanical problems or is unbalanced.
